Description

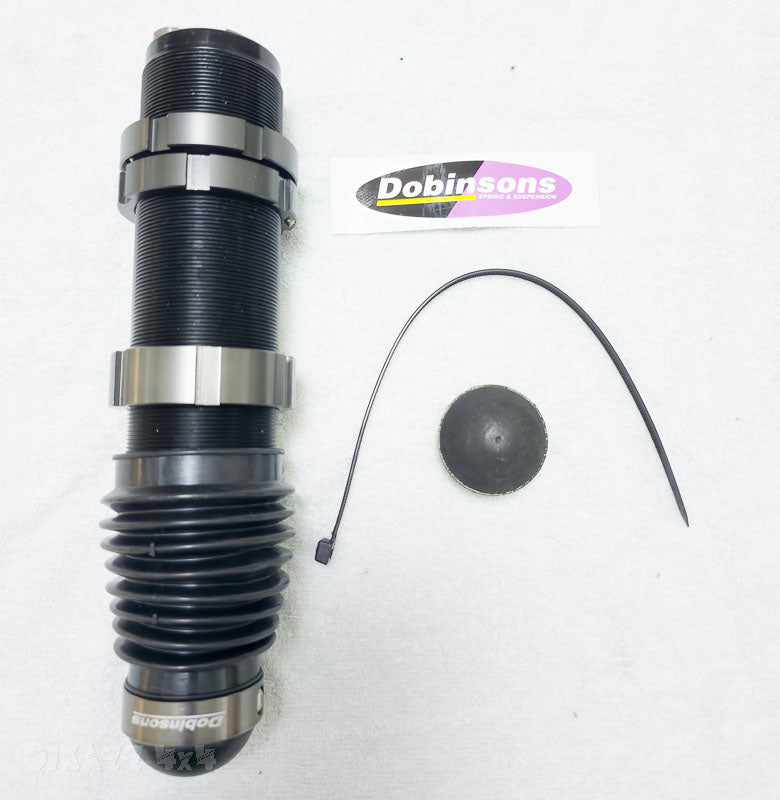

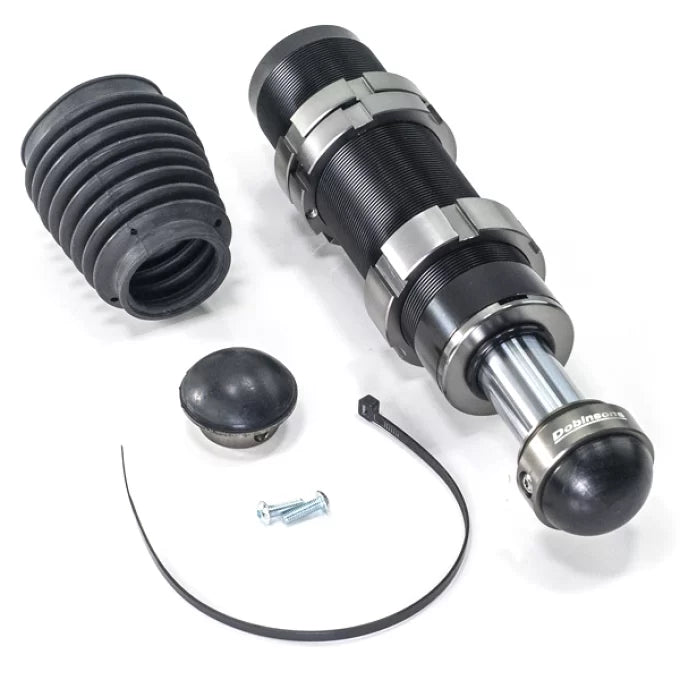

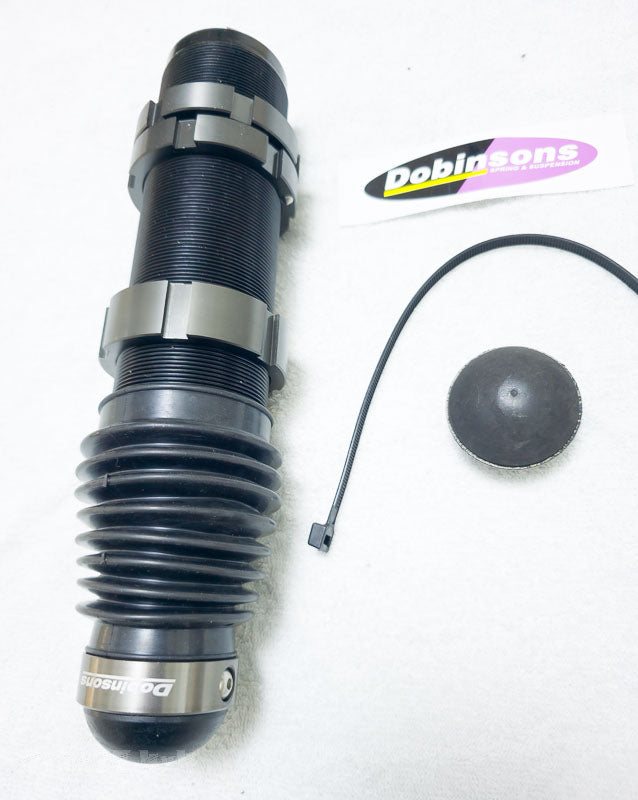

HBS56-001 Hydraulic bump stop (x1)
NOTE: cans and mounting hardware not included (available separately)
|
Part Number |
Stroke |
Thread Length |
Extended Length |
Compressed Length |
|
HBS56-001 |
50mm - 2" |
145mm - 5.7 |
273mm - 10.75" |
223mm - 8.75 |
- CNC Machined 50mm Billet Aluminum Piston
- EDP Coated 3mm Thick 56mm Steel Body
- Threaded Body For Height Adjustment
- Supplied with both Interchangeable Super Quiet Rubber Rod End & Hard Nylon
- 30mm Micro Polished Hard Chrome Shaft
- Slow Rebound Valving To Prevent Bucking
- Removable Dust Cover Boot For Stealth Appearance
- Fully Rebuildable & Tunable
- O-Ring Travel Indicator
- Heavy Duty Extreme-Race style Triple Seal Design
- Nitrogen Gas Charged & Tunable (100 to 300 PSI)
- Extra Short Dead Lengths For Compact Fitment
