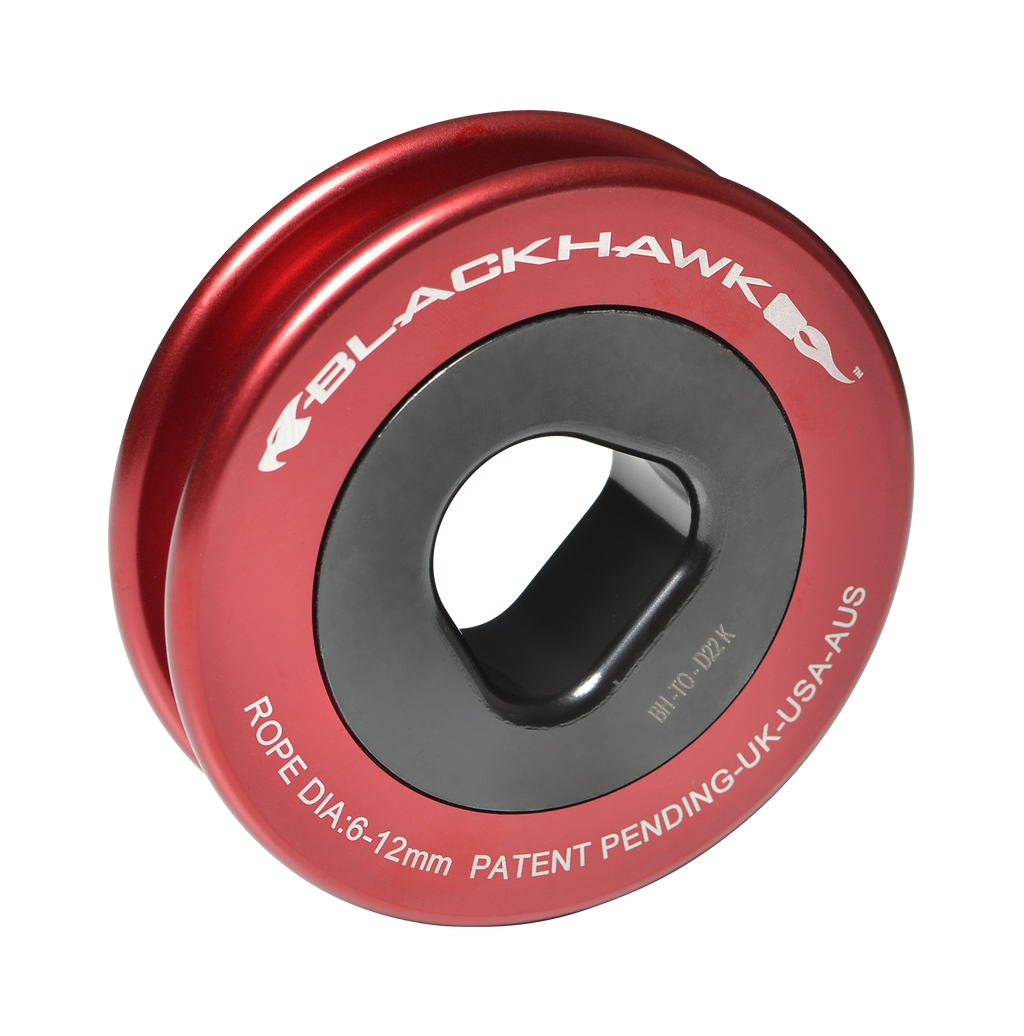

Blackhawk Orbiit Winch Pulley Ring

RoadsafeSKU: BH-TO-R

Sale price$199.00


  • 4WD innovative, rebuildable design with a low friction internal bearing for improved rope contact surface longevity, operational efficiency, and reduced heat generation
  • International product patents and design registrations
  • Designed, engineered and tested in Australia
  • Minimum Breaking Strength 21,000Kgs (44,000Lbs)
  • Working Load Limit 10,500Kgs (23,000Lbs)
  • Weighs Under 1kg



■ Bearing type design mitigates heat generation
■ Anodised alloy finish for reduced friction
■ Designed for use with synthetic winch ropes, soft shackles &
steel bow shackles
■ Patented annulus for locating within recovery system
■ Replaces the heavy snatch block and increases the safety of
your recovery system
■ Manufactured from premium materials including 7075 Alloy &
4140 Chromoly steel

■ Internal core design ensures soft shackle compatibility and
positive location of the winch ring within recovery system. The
outside ring has a deep rope channel for improved line retention
when not under load
■ Includes bearing for pulley efficiency compared to traditional
winch ring type products further reducing effort required.
This efficiency significantly increases the life of the pulley’s
anodised coating, which the rope runs over. Resulting in
increased longevity of the pulley surface and lifespan of winch
rope used
