Description

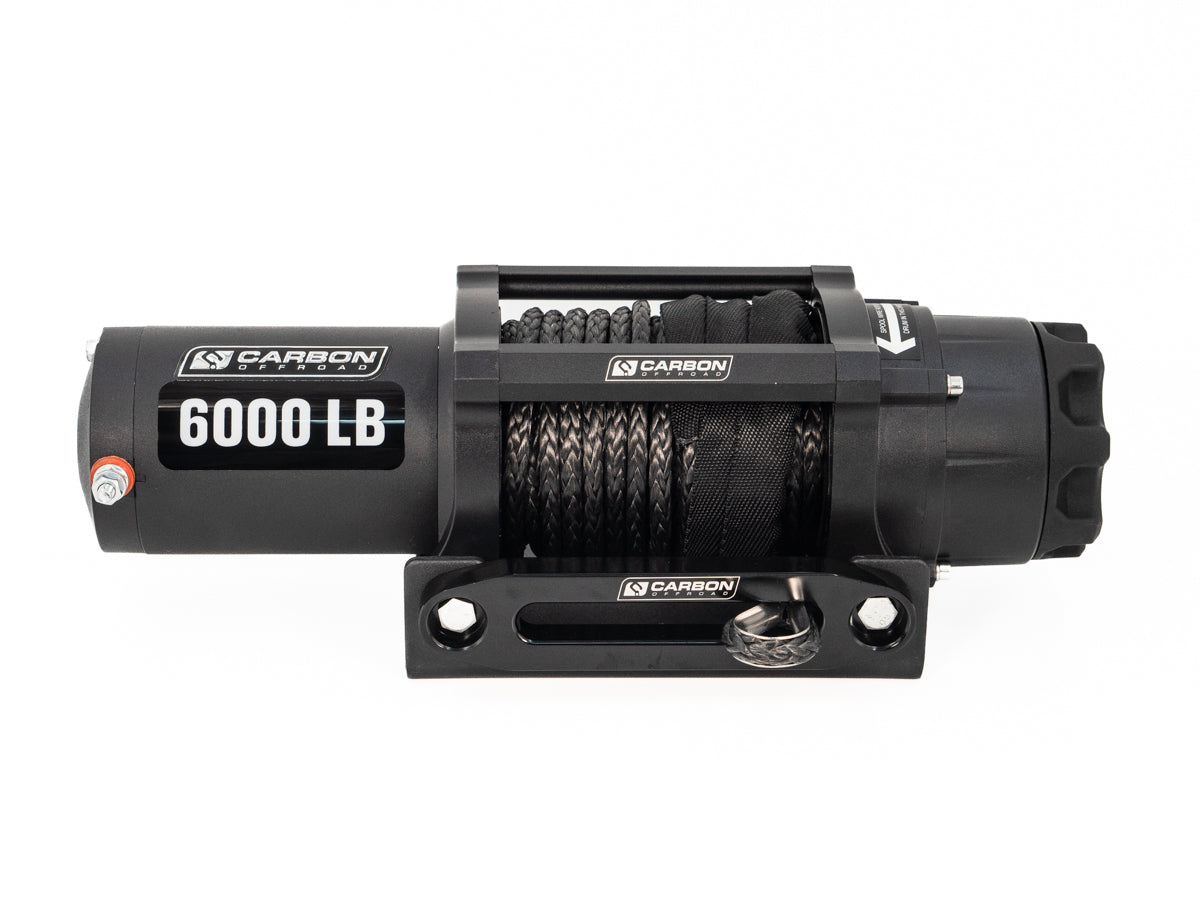

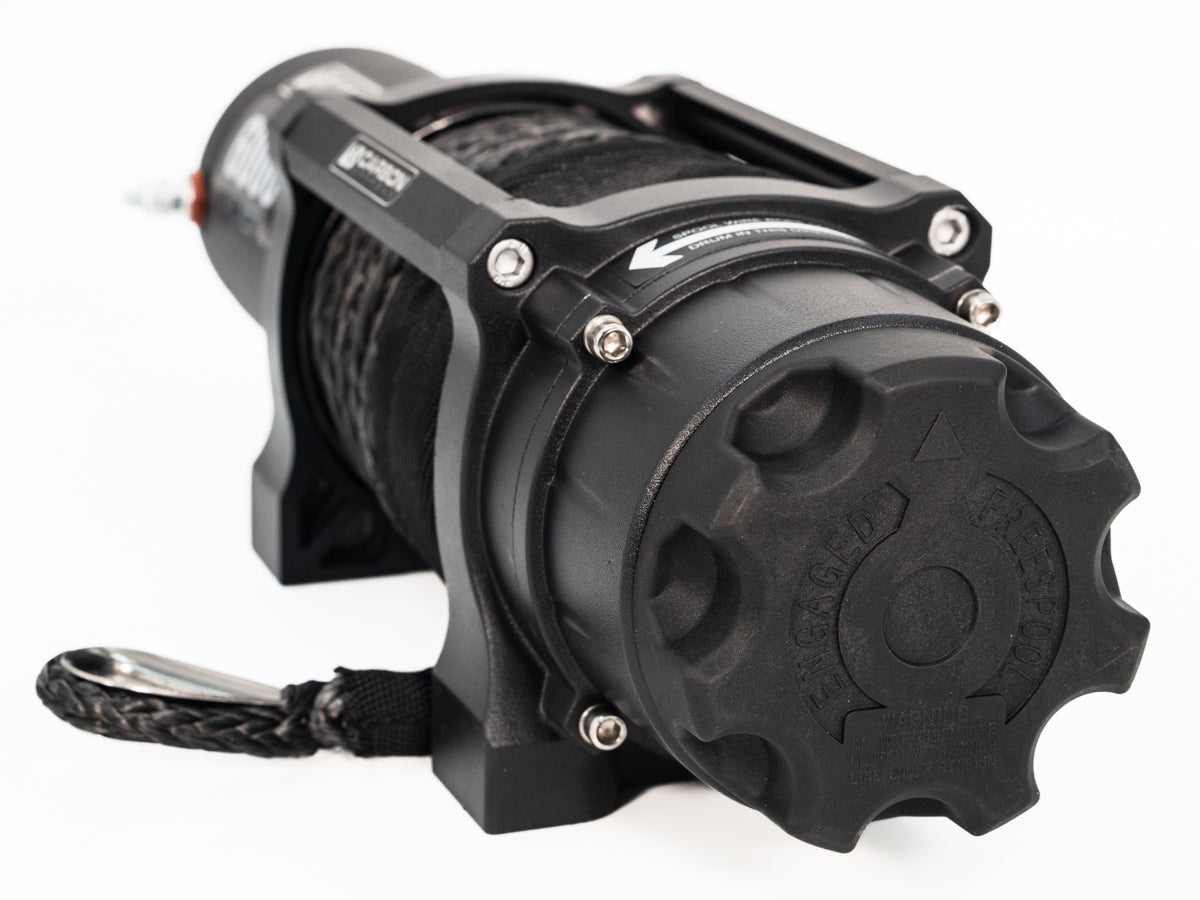

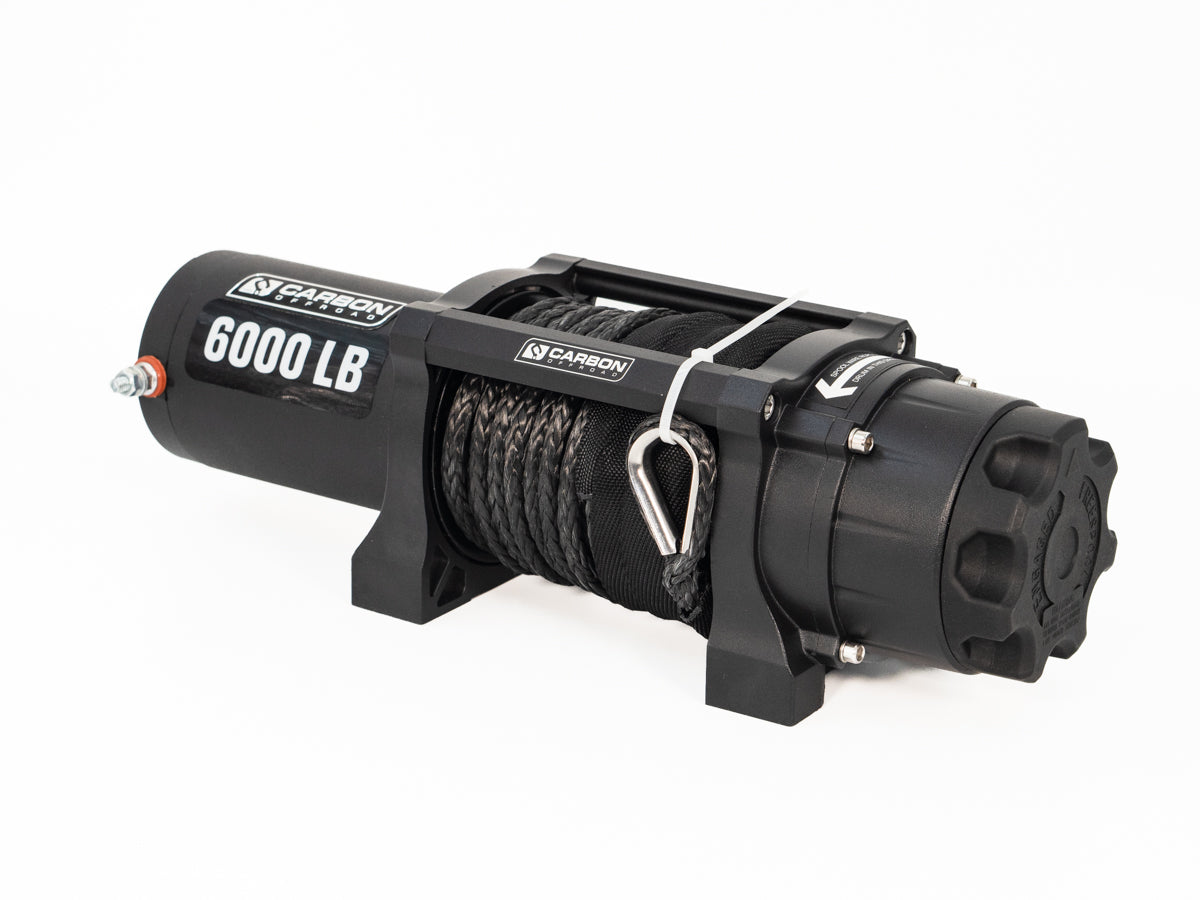

The Carbon Offroad Long Drum 6000 lb ATV winch for ATVs, small 4wds, caravans, trailers, boats.

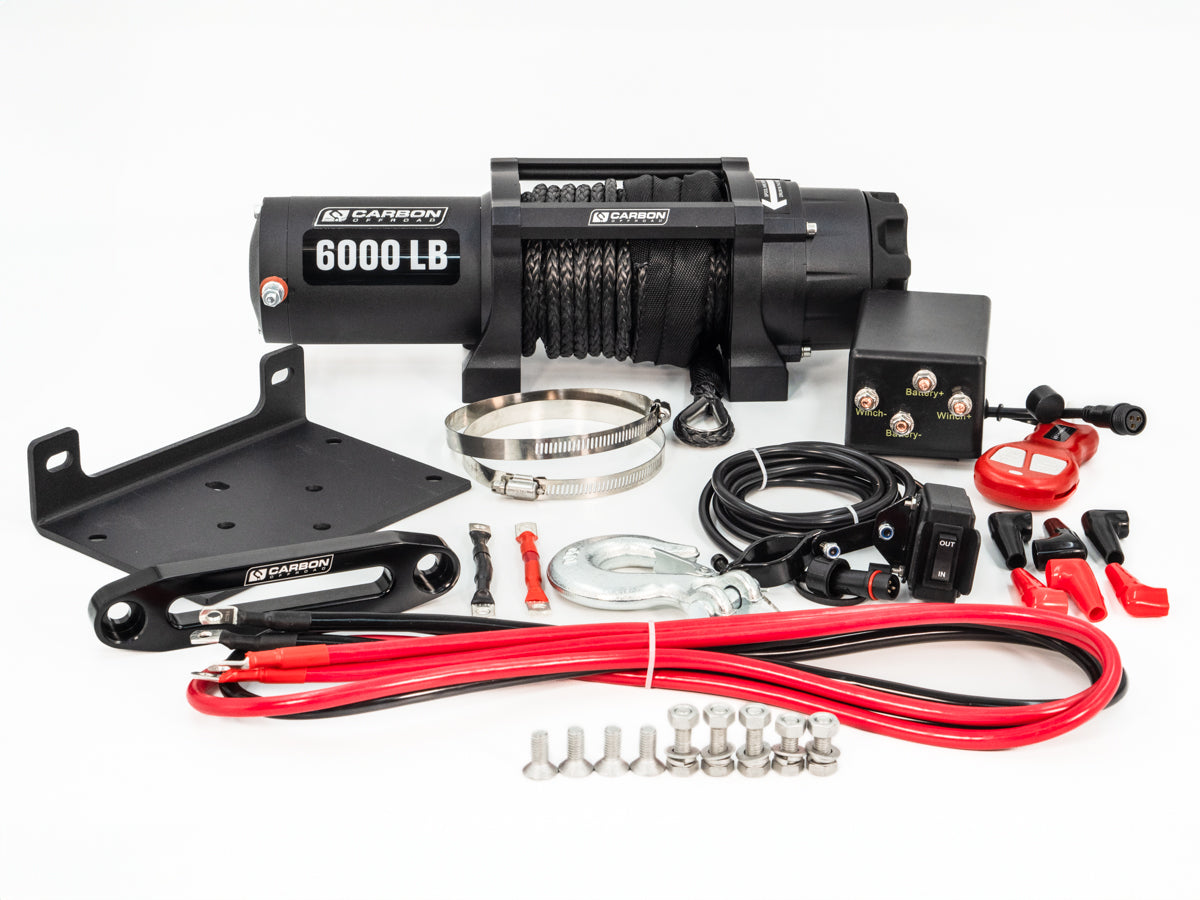

A compact winch with a long drum and 26m of rope. Installation to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.
Features and Benefits
- Sealed motor and geartrain allows for flawless operations in extreme conditions
- Permanent magnet motor provides heavy duty torque for increased pulling power
- Cam action disengages gears for near silent free-spooling
- Mechanical and dynamic brake offers increased control and prevents rollback
Specification for CW-XD6L
|
Single line rated pull |
6,000lb(2,725kg) |
|
Motor |

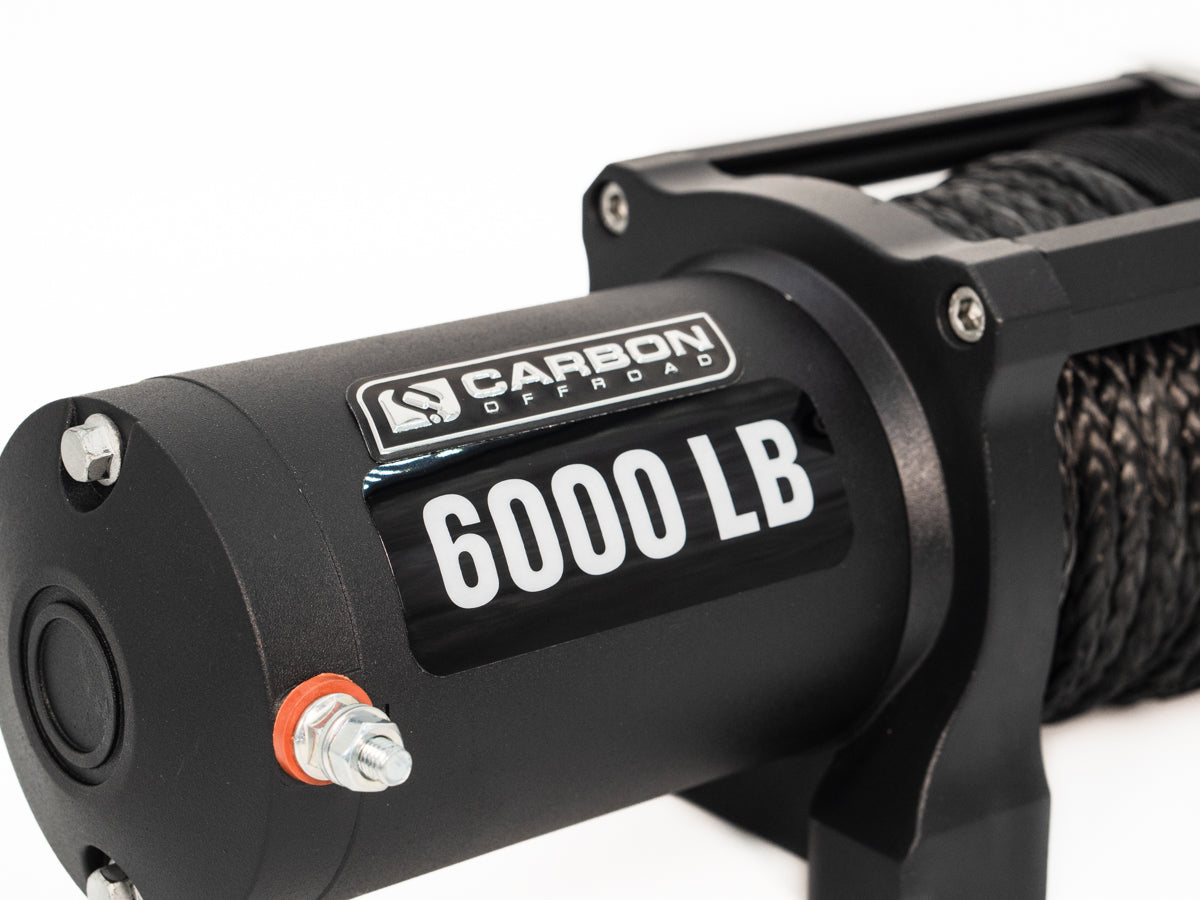

12V 2.5hp permanent magnet |
|
Control |
Handlebar Mini-Rocker, Wireless remote control Included |
|
Gear train |
3-stage planetary |
|
Gear ratio |
147:1 |
|
Clutch |
Roller-disc Full load automatic |
|
Braking Action |
Automatic brake in the motor bracket. No heat on through drum during operation |
|
Drum Size |
Φ51mmx208mm |
|
Mounting bolt pattern |
76 x 254mm |
|
Overall Dimensions |
473mmx115mmx119mm |
|

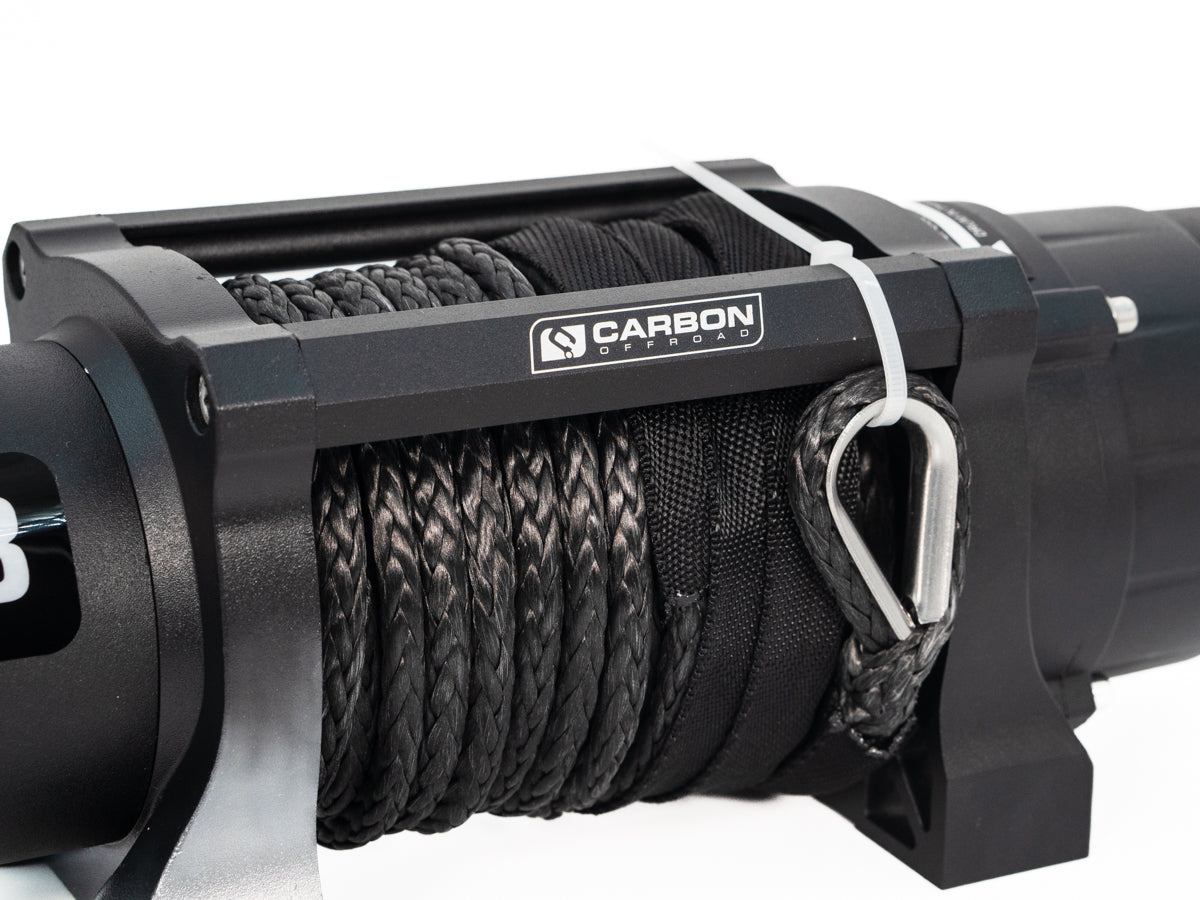

Synthetic Rope |
6.5mmx24m |
|
Hawse |
Aluminum hawse |
|
Shipping Weight |
12.5kg |
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor Current @12V |
| 0 (0) | 13.8 (4.2) | 15 Amps |
| 2000 (907) | 9.5 (2.9) | 125 Amps |
| 4000 (1814) | 7.2 (2.2)190 | Amps |
| 6000 (2721) | 4.6 (1.4) | 240 Amps |
**The manual indicates that a circuit breaker is included, unfortunately this is not the case. We apologise for any confusion.**
