Description
Complete 24-Piece Valve Stem Seal Set for BMW N57 / B57 Diesel Engines
A full engine set of genuine Corteco valve stem seals for BMW's 6-cylinder 3.0 litre N57 and B57 diesel engines. Corteco is the automotive aftermarket brand of Freudenberg, one of the original equipment suppliers of sealing technology to BMW, so you're fitting the same quality as factory.
Why replace your valve stem seals?
Valve stem seals control the tiny amount of oil that lubricates the valve guide. As the FPM rubber hardens and loses elasticity with age and heat cycling, oil begins to seep past the seal and down into the combustion chamber.
Common symptoms of worn stem seals include:
- Blue-grey smoke on startup, or after the engine has been idling
- Gradually increasing oil consumption with no visible external leak
- Oil fouling of the glow plugs
- Accelerated carbon build-up on the valves and in the intake
Because replacement requires removal of the camshafts, stem seals are almost always done as part of a wider cylinder head job — a head refresh, a timing chain replacement, or a performance camshaft and valve spring upgrade. Doing them at the same time saves a second teardown later.
Specifications
| Part Number | 19036772 |
| Manufacturer | Corteco (Freudenberg Group) |
| Trade Number | VSS KIT |
| Quantity in Set | 24 seals — complete engine set |
| Material | FPM (fluoride rubber) — high heat and oil resistance |
| Height | 15.8mm |
| Inner Diameter | 5mm |
| Outer Diameter | 9.5mm |
| Flange Diameter | 21.5mm |
| Number of Valves | 24 |
| Replaces OE Part Number | BMW 11347812926 |
| Also Cross-References | Elring, Victor Reinz |
| EAN | 3358960575418 |
| Country of Origin | Italy |
| Weight | 0.162kg |
What's Included

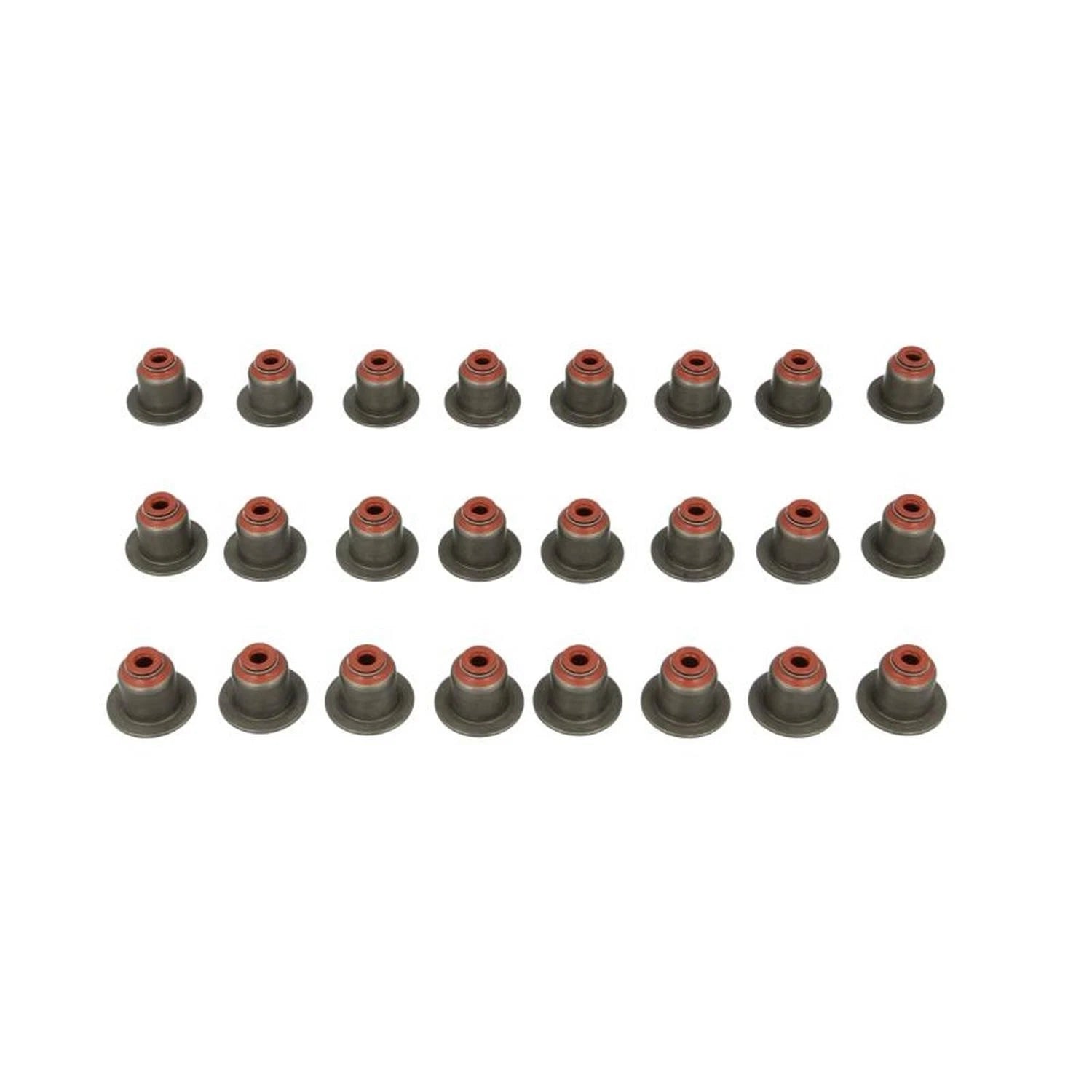

- 24 x Corteco valve stem seals (complete set for one engine)
Vehicle Fitment
Suits BMW 2993cc 6-cylinder diesel engines (N57 and B57 families). Confirm against your engine code before ordering.
- 3 Series: 325d, 330d, 330xd, 330d xDrive, 335d xDrive — E90, E91, E92, E93, F30, F31, F34, F80
- 4 Series: 430d, 430d xDrive, 435d xDrive — F32, F33, F36, F82, F83
- 5 Series: 525d, 530d, 530d xDrive, 535d, 535d xDrive, 540d xDrive, M550d xDrive — F07, F10, F11, G30, G31, F90
- 6 Series: 630d, 630d xDrive, 640d, 640d xDrive — F06, F12, F13, G32
- 7 Series: 730d, 730Ld, 730d xDrive, 740d, 740d xDrive, 750d xDrive — F01, F02, G11, G12
- X3: xDrive 30d, xDrive 35d, xDrive M40d — F25, G01
- X4: xDrive 30d, xDrive 35d, xDrive M40d — F26, G02
- X5: xDrive 25d, xDrive 30d, xDrive 40d, M50d — E70, F15, F85
- X6: xDrive 30d, xDrive 40d, M50d — E71, E72, F16, F86
Important Notes
- Installation requires camshaft removal and a valve spring compressor. Professional installation is recommended.
- Always replace all 24 seals as a set — mixing new and aged seals leads to uneven oil control.
- Ideal to fit alongside a performance valve spring or camshaft upgrade, since the valvetrain is already stripped.
- Please confirm your engine code before ordering. Contact us if you need help checking fitment.
