Genuine BMW 2700 BAR CR Fuel Pressure Sensor Upgrade for M47 / M57 / M67



This Fuel Rail Pressure Sensor Will Allow your Highly Tuned BMW CR Engine to Measure Rail Pressures up to 2700 BAR

This Upgrade is for Vehicles fitted with the Stock 1600 BAR Fuel Pressure Sensor

The Stock Fuel Pressure Rail Sensor on the below engines has a 90 Degree Angled Plug on them. The Fuel Rail will have to be removed in order to Fit this Upgraded Sensor (Has Straight Plug)

The Thread on the Upgraded Sensor is slightly shorter, therefore, is supplied with a Spacer / Washer, allowing the Sensor to seal onto the rail. Meaning NO Physical Rail Modification is Required.

NOT to be fitted WITHOUT tuning otherwise damage WILL occcur. Linearisation data will be emailed upon purchase.

FITMENT / COMPATIBILITY:

For Vehicles fitted with M12 Threaded Pressure Sensors, if the fuel rail has a threaded insert, this can be removed and the M18 Threaded Fuel Pressure Sensor can be fitted and used as an upgrade.

On some models you will need to reroute the stock vacuum pipe that can be found next to the original sensor.

A digital fitting and calibration guide is available for download once you have purchased this product.

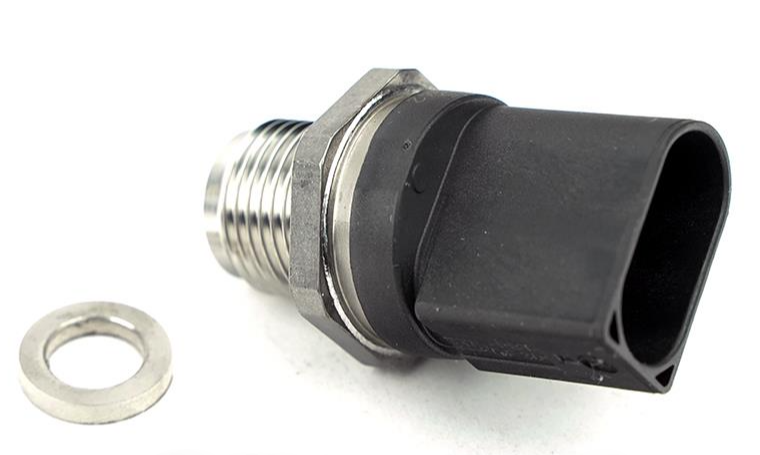

This Kit Includes:



1x BMW 2700 BAR Rail Pressure Sensor
1x Rail Sensor Spacer / Washer



Series / Chassis



E46 / E53 / E60 / E60N / E61 / E61N / E63N / E64N / E65 / E66 / E70 / E70N / E71 / E83 / E83N / E87 / E90 / E90N / E91 / E91N / E92 / E92N / E93



Model



118d / 120d / 318d / 318td / 320Cd / 320d / 320td / 325d / 330Cd / 330d / 330xd / 335d / 520d / 525d / 525xd / 530d / 530xd / 535d / 635d / 730d / 730Ld / 740d / X3 / X5 / X6



Engine



M47N / M47N2 / M57N / M57N2 / M67



Upgrade for Genuine BMW Fuel Pressure Rail Sensor Part Numbers:



13 53 7 787 167 - 13537787167 - 7 787 167 - 7787167
