Description

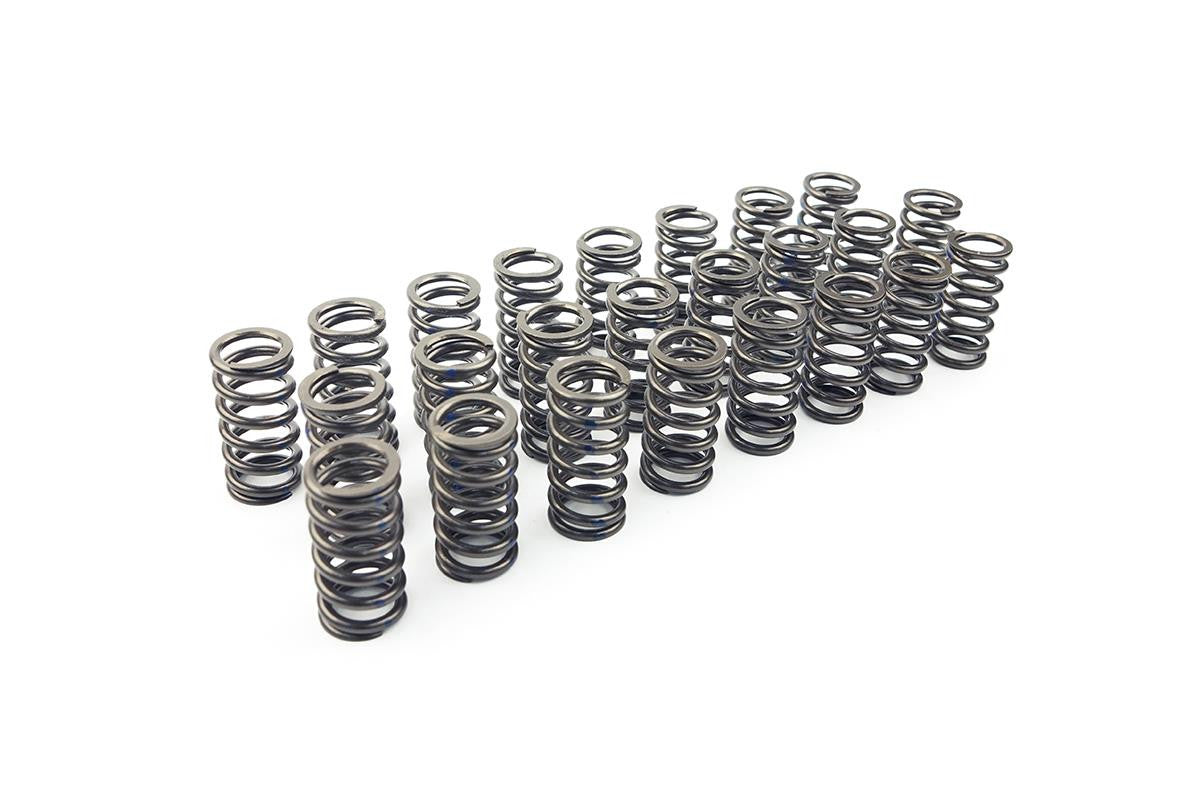

Upgraded Performance Valve Spring Kit for BMW N57 / B57 3.0 Diesel Engines
A complete set of uprated performance valve springs designed for BMW's 6-cylinder 3.0 litre N57 and B57 diesel engines. Standard valve springs are one of the first limiting factors once you push a modified diesel beyond its factory operating window — higher boost, more fuel and a raised rev ceiling all increase the load the spring has to control.
Why upgrade your valve springs?
At elevated RPM or with aggressive camshaft profiles, factory springs can allow valve float and valve bounce, where the valve loses contact with the cam and no longer seals properly. Beyond the immediate power loss, this risks valve-to-piston contact and severe engine damage. These springs deliver substantially higher seat and open pressures to keep the valvetrain under control.
They are an essential upgrade for any built N57 or B57 running performance camshafts, a raised rev limit, or significantly increased boost pressure.
Performance Gains
- Seat pressure: 60 lbs — a 60% increase over standard
- Open pressure @ 9mm lift: 91 lbs — a 55% increase over standard
- Maximum lift: 10.7mm — suits aggressive performance camshaft profiles
- Eliminates valve float and valve bounce at high RPM
- Supports higher boost and increased fuelling safely
Specifications
| Kit Contents | 24x Darkside Performance Valve Springs (full engine set) |
| Seat Pressure | 60 lbs (+60% vs standard) |
| Open Pressure @ 9mm Lift | 91 lbs (+55% vs standard) |
| Maximum Lift | 10.7mm |
| Engine Family | BMW N57 / B57 6-cylinder 3.0 diesel |
| Replaces OE Part Numbers | 11347805366 / 11 34 7 805 366 11347797714 / 11 34 7 797 714 |
What's Included
- 24 x Darkside Performance Valve Springs
Engine Compatibility
Suits the following engine codes: N57, N57N, N57S, N57X, N57Z, B57, B57S
Vehicle Fitment
This kit covers a very broad range of BMW diesel models. Fitment is determined by engine code — if your vehicle runs any N57 or B57 variant listed above, this kit suits.
- 3 Series: 325d, 330d, 330dX, 330xd, 335dX — E90N, E91N, E92, E92N, E93, E93N, F30, F30N, F31, F31N, F34, F34N, G20, G21
- 4 Series: 430d, 430dX, 435dX — F32, F32N, F33, F33N, F36, F36N
- 5 Series: 525d, 530d, 530dX, 535d, 535dX, 540dX, M550dX — F07, F07N, F10, F10N, F11, F11N, G30, G31
- 6 Series: 630d, 630dX, 640d, 640dX — F06, F06N, F12, F12N, F13, F13N, G32
- 7 Series: 730d, 730dX, 730Ld, 730LdX, 740d, 740dX, 740LdX, 750dX, 750LdX — F01, F01N, F02, F02N, G11, G11N, G12, G12N
- 8 Series: 840dX — G14, G15, G16
- X Models: X3 30dX / 35dX / M40dX, X4 30dX / 35dX / M40dX, X5 25dX / 30dX / 35dX / 40dX / M50dX, X6 30dX / 40dX / M50dX, X7 30dX / M50dX — E70N, E71, F15, F16, F25, F26, G01, G02, G05, G06, G07
Important Notes
- Installation requires removal of the camshafts and specialist valve spring compression tooling. This is a workshop-level job — professional installation is strongly recommended.
- Suits N57 and B57 engines only. This kit does not fit the earlier M57 engine.
- Sold as a complete 24-spring engine set.
- In stock and ready to ship from our Melbourne warehouse. Contact us if you need multiple sets.
