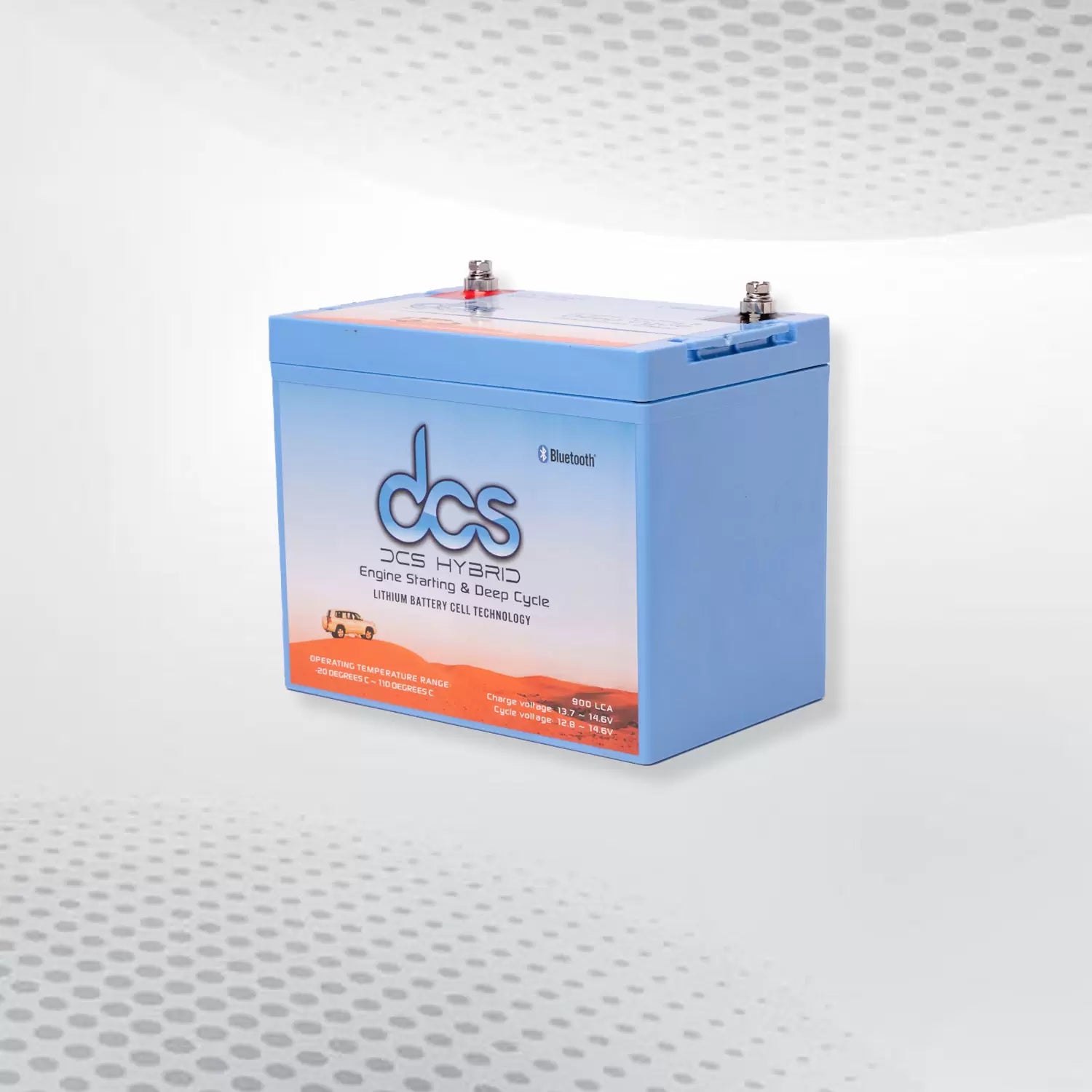

DCS Ultimate 12V 180AH Dual Battery System (Lithium) Without MPPT Solar Regulator

Save $750.00
Deep Cycle SystemsSKU: DCS-180AH

Price:
Sale price$2,249.00 Regular price$2,999.00

Description

– 2 x DCS 90Ah LFP batteries (optimised for engine bay installs)
– Victron Battery Protect SBP-65A
– Max alternator output 160Amps
– Backed by a 3 year under bonnet replacement warranty
– Fully programmable via bluetooth
– Tiny power consumption 1.2mA when engaged
– Suitable for Hilux, Prado, Nissan’s, Mitsubishi’s, Land Rover Defenders etc…
– Without integrated solar regulator



FREE delivery to all major cities in Australia.

-------------------------------------------------------------------------------


Our latest hybrid 180Ah under bonnet dual battery systems now feature our powerful integrated 80V/20A MPPT solar regulators. You can now see the extra solar supply input via a dedicated shunt via our Bluetooth app.

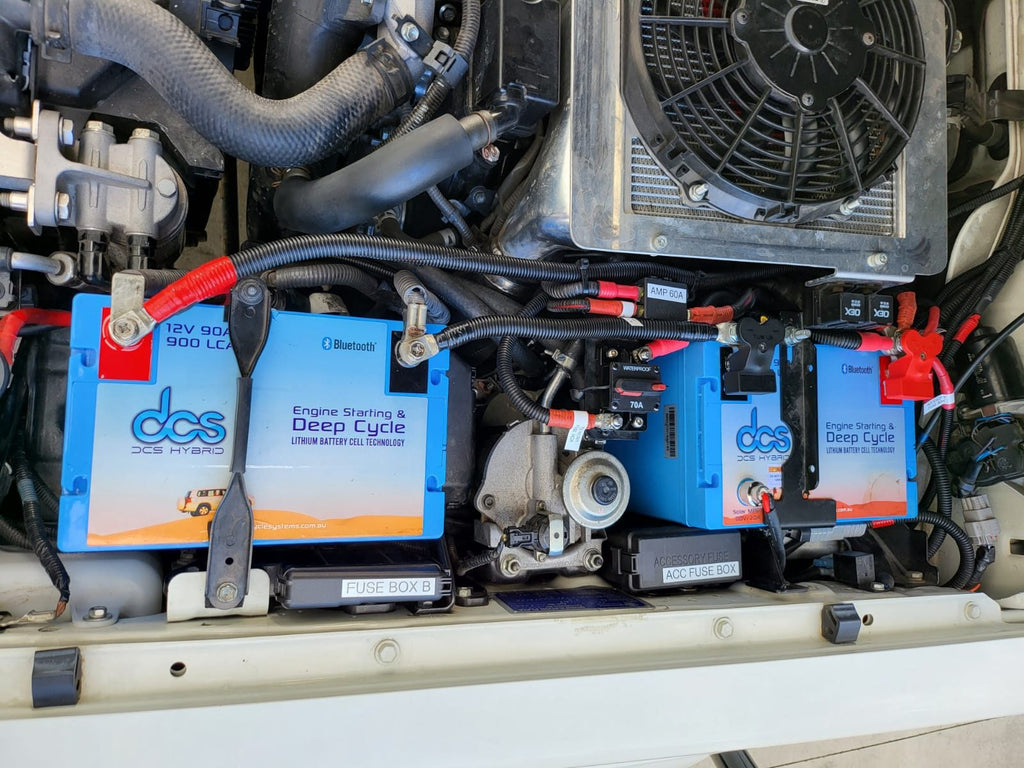

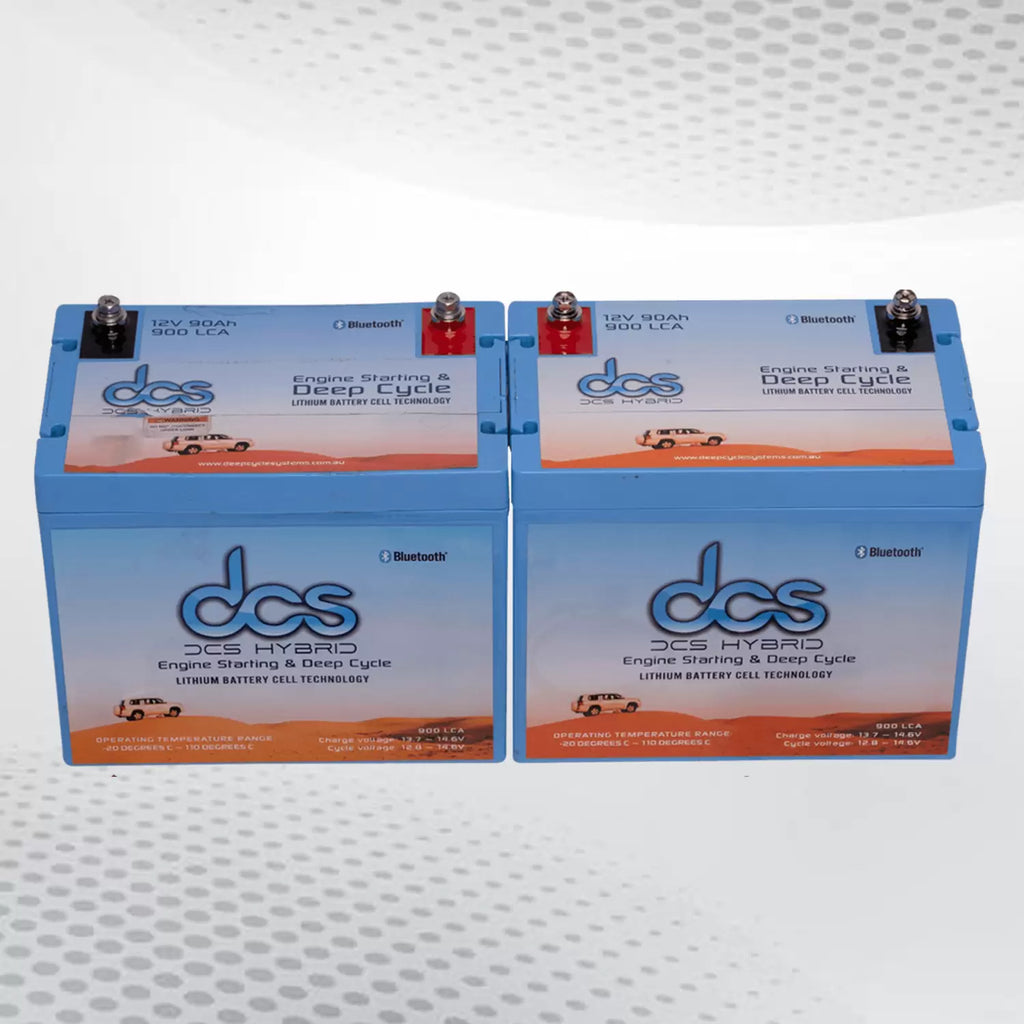

The 180Ah DBS is supplied with 2 x DCS 90Ah Hybrid Batteries, one battery is configured as a Right Hand Positive and the second battery is configured as a Left Hand Positive that also has the solar MPPT input socket. Part of the system you also get a IP67 aviation to Anderson Plug cable, to plug and play your solar supply.

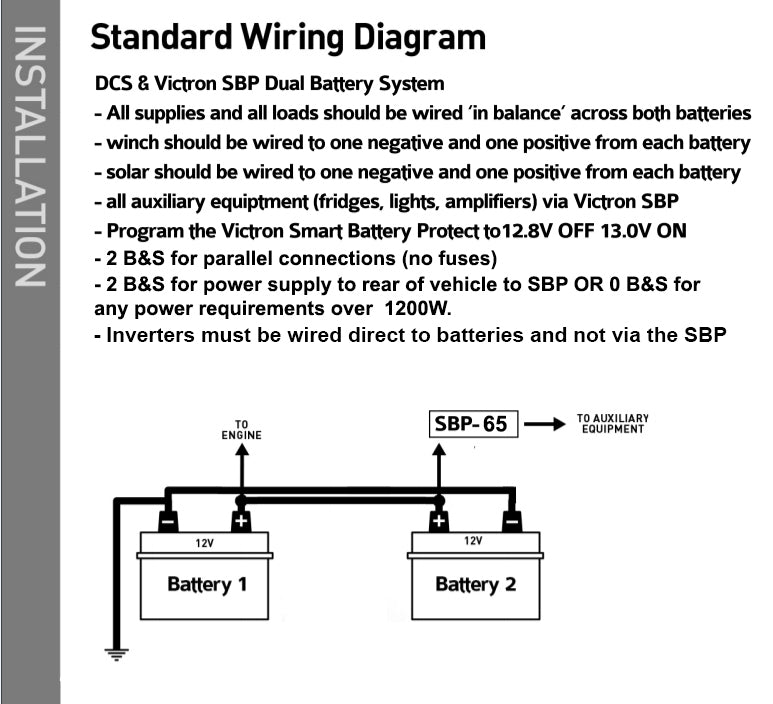

All DCS dual battery systems (DBS) are supplied with the fully programmed Victron Smart Battery Protect’s which are a load disconnect. This device is what governs the reserve for engine starting. Very efficient only drawing 1.2mA when engaged. We recommend to use the top 80% for deep cycling for accessories and the remaining 20% is reserved for engine cranking. The SBP’s should be installed inside the cabin and you should be protecting as many of your light loads as possible, USB sockets, fridges, lighting, dash cams, UHFs, Cel-Fi’s etc.. Inverters over 300W must be wired directly to the batteries bypassing the SBP’s.

With two of the DCS 90Ah Hybrid batteries connected in parallel you can charge up to a maximum of 80A x 2, so 160A. So ideally keep alternators under 150A. All DCS batteries feature high performance cylindrical cells, and this mechanical design is very efficient so it’s very easy to recharge these batteries, there is no need to install larger alternators, OEM alternators are the best for our batteries and will charge them back up very fast. If your running a vehicle with a lazy smart alternator focus on installing a quality commercial solar panel something at least 360W+ as our powerful 20A MPPT is able to yield in excess of 100Ah per day. Which will easily keep the batteries topped up when running a standard sized fridge.

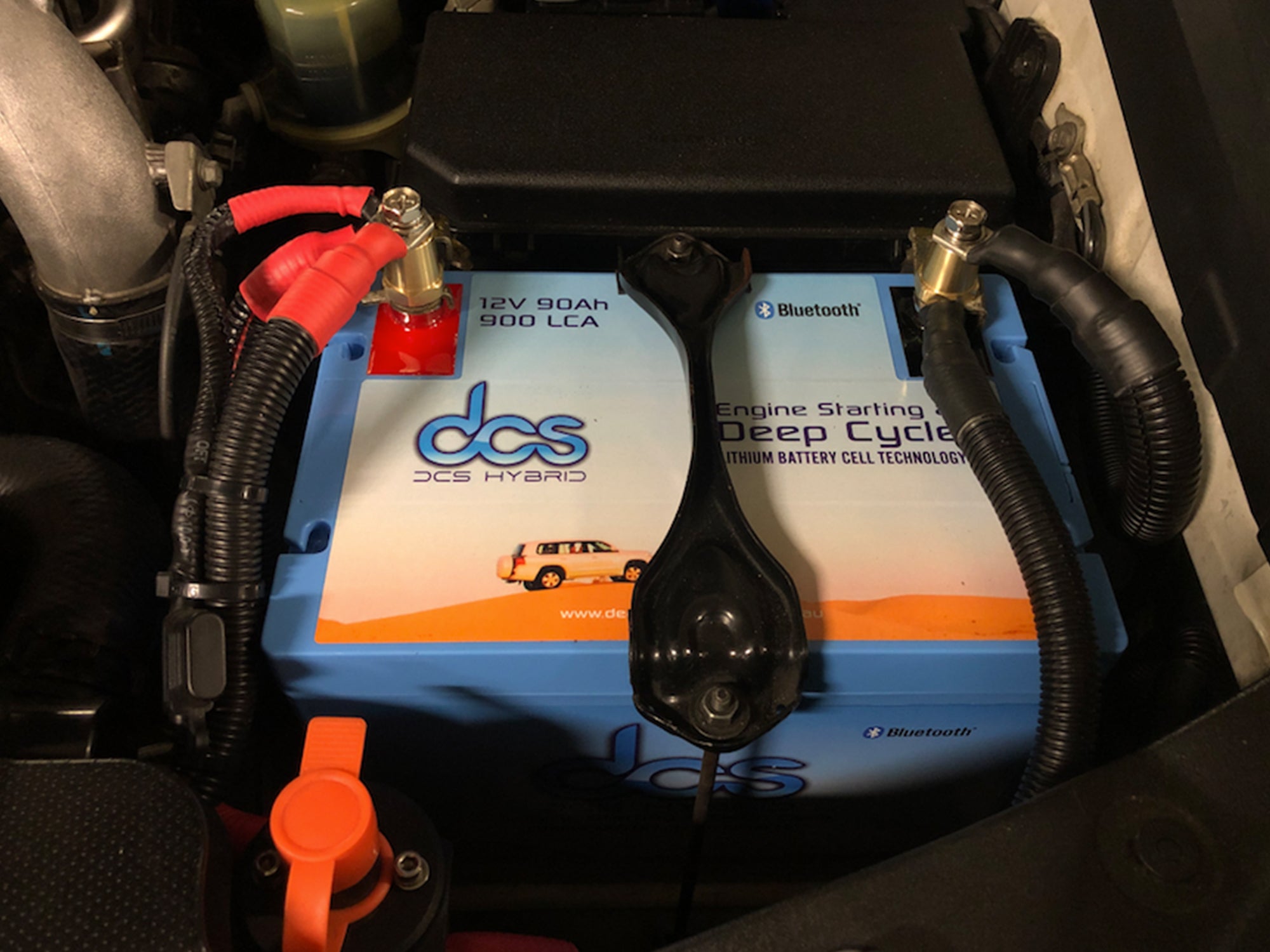

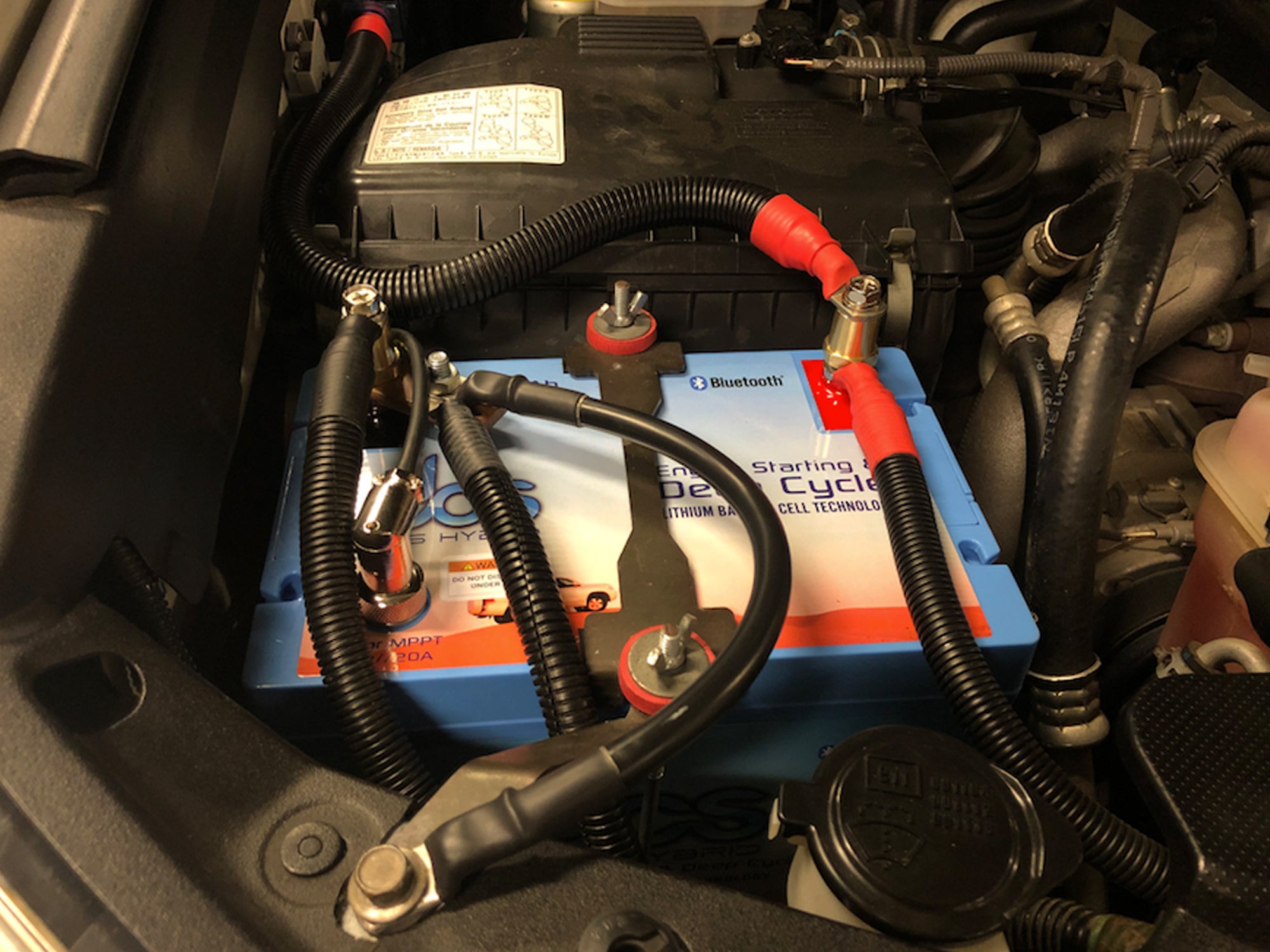

This system is suitable for just about every make/model of 4WD on the market that can accommodate these sized batteries under the bonnet or of course in the cabin if one so wishes.

Specifications:

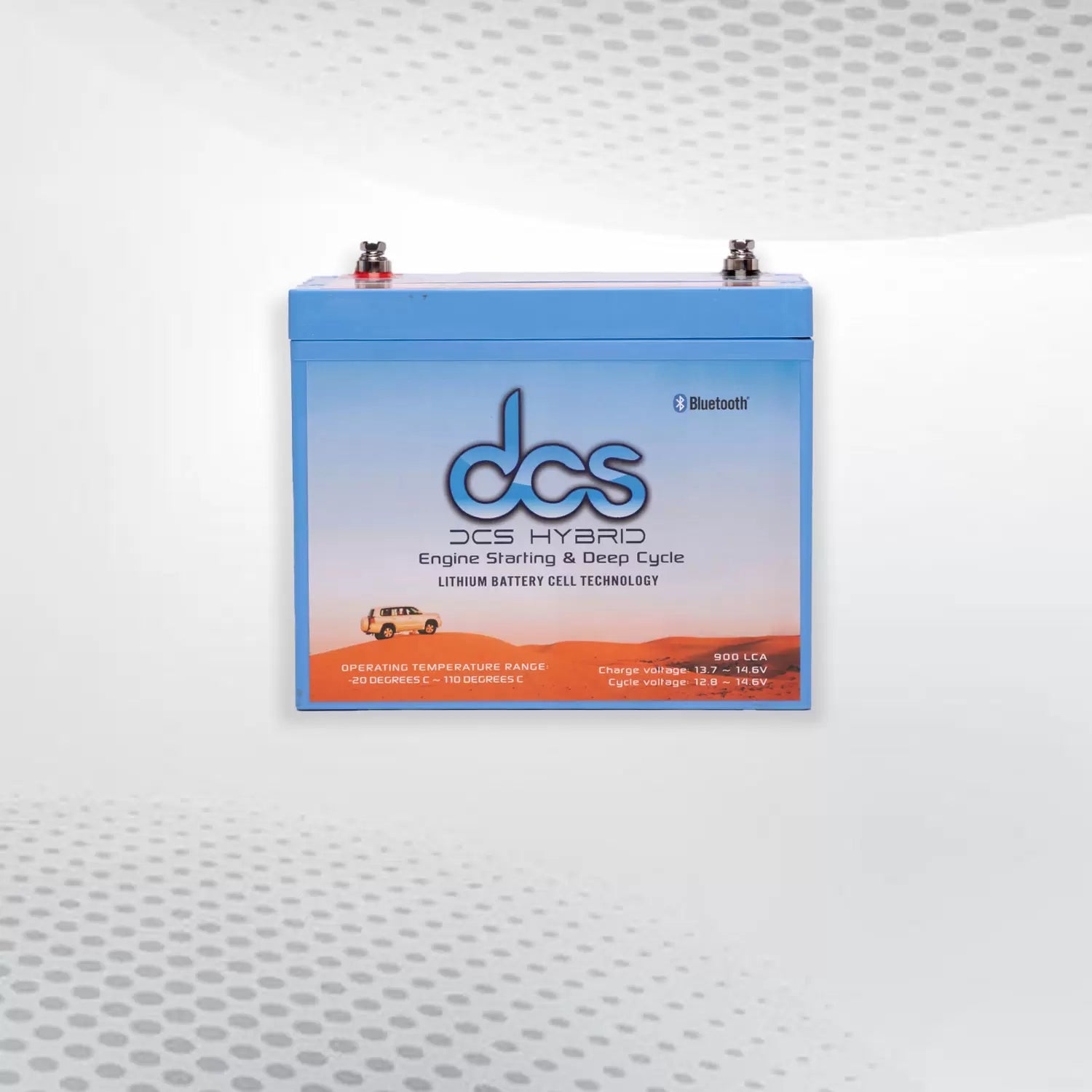

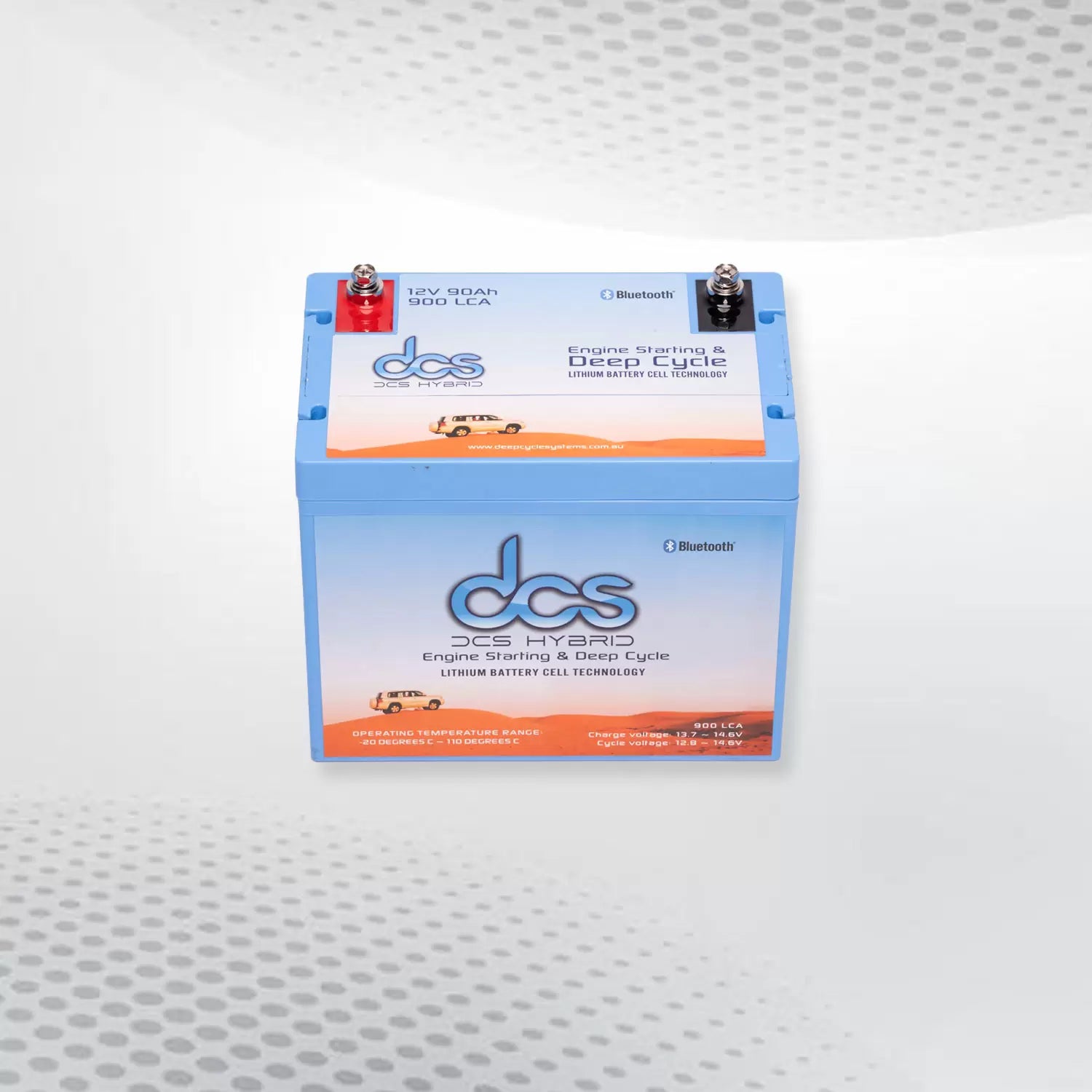

Nominal Voltage 12.8V
Nominal Capacity (1Hr) 90Ah
Case Dimensions (L x W x H) 260mm x 169mm x 210mm
Weight | RHP 10.30KGs (without MPPT)
Cycling voltage 12.8~ 14.6V
Charge voltage 13.8 ~ 14.6V
Float Voltage 13.5 ~ 13.7V
Max Charge Current 80A
Recommended Charge Current ≤70A
Max Discharge Current ≤200A
BMS (built in) Automatic cell balancing, over discharge/charge
Cell Chemistry DCS 3.2V 5.0 – 7.2Ah Cylindrical (LifePO4)
Cycle Performance 2500 Cycles @ 100% DOD
LCA (Lithium Cranking Amps) 900A
Ingress Protection IP54
Case PP (flame retardant)
Operating temp Range -30 to +110 degrees C
Terminals Top Mount M8 Stainless steel / Copper
Parallel Connections Only Yes
Warranty 3 years
Certifications UN 38.3, UL 1642, IEC 62133 & 62619, CE

DOWNLOAD APP (DCS LFP)

DCS Bluetooth Technology powered by DCS LFP, this APP is only for DCS LFP batteries which is based on BLE 4.0 technology.

This App provides comprehensive monitoring for DCS LFP batteries, including:

  • SOC%
  • Battery pack voltage
  • Amp meter – charge and discharge current
  • Battery Management MOSFET temperature
  • Individual Cell Status with balancing indicators.
  • Connectivity distance up to 10 meters.
