Description

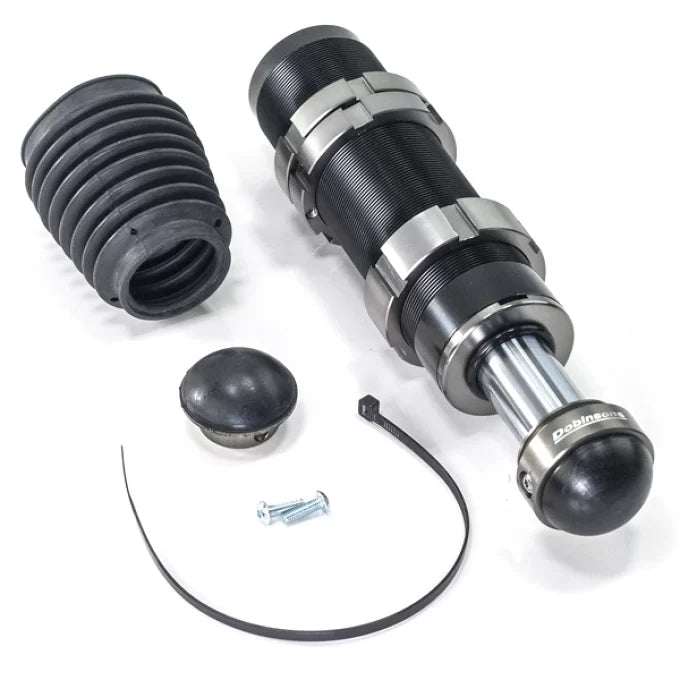

HBS66-002 Hydraulic bump stop (x1) - Suits Patrol Front Mounting Kit
NOTE: cans and mounting hardware not included (available separately)
|
Part Number |
Stroke |
Thread Length |
Extended Length |
Compressed Length |
|
HBS66-002 |
57mm - 2.25" | 185mm - 7.28" | 305mm - 12" | 248mm - 9.75" |
- CNC Machined 60mm Billet Aluminum Piston
- EDP Coated 3mm Thick 66mm Steel Body
- Threaded Body For Height Adjustment
- Supplied with both Interchangeable Super Quiet Rubber Rod End & Hard Nylon
- 40mm Micro Polished Hard Chrome Shaft
- Slow Rebound Valving To Prevent Bucking
- Removable Dust Cover Boot For Stealth Appearance
- Fully Rebuildable & Tunable
- O-Ring Travel Indicator
- Heavy Duty Extreme-Race style Triple Seal Design
- Nitrogen Gas Charged & Tunable (100 to 300 PSI)
- Extra Short Dead Lengths For Compact Fitment
