Enerdrive 160W Folding Solar Panel Kit

EnerdriveSKU: SPF-EN160W

Price:
Sale price$489.00

Description

Features

160w Watt Mono-crystalline Folding Panel Kit (Im 8.9amps)

Enerdrive offers a great outdoor solution to keep your battery and 12 volt equipment going and going all year round in the sun.

Included in the kit is a 10amp Enerdrive Solar controller which is completely waterproof for your peace of mind if you do happen to leave the kit outside.

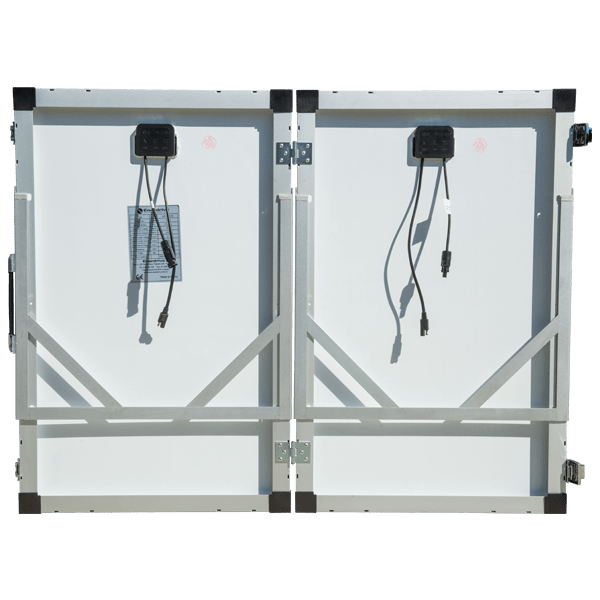

  • Quality Mono-Crystalline solar panels with solid 35mm double channel aluminium frames
  • Sturdy legs to provide you with the best angle for the panels to the sun
  • 5 meters of easy plug and play battery leads
  • A quality 10amp solar regulator with adjustable flooded or sealed type battery switch modes

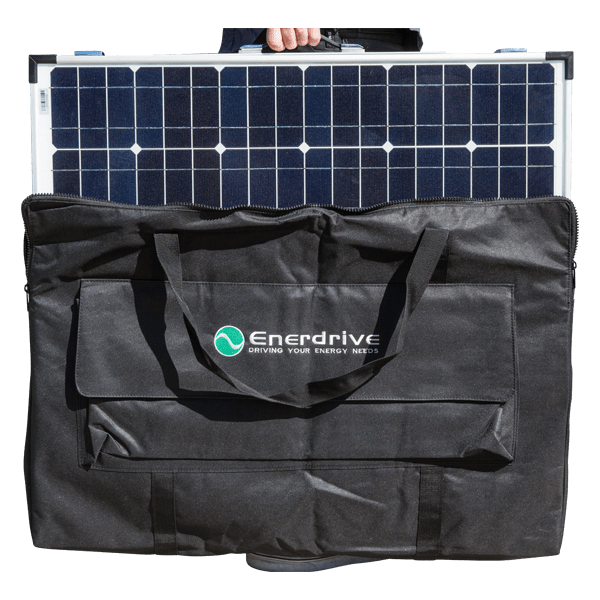

  • A strong, durable canvas bag with carry pouch for all accessories
  • Locally supported 2 year product warranty with spare parts on demand

Specifications

Enerdrive Part Number SPF-EN160W
Max Power Pm(W) 160
Power Tolerance % ± 3%
Max Power Voltage Vm(V) 18.60
Max Power Current Im(A) 8.61
Open Circuit Voltage Voc(V) 24.10
Short Circuit Current Isc(A) 7.78
Max System Voltage (VDC) 1000
Dimensions (mm) Folded 670(w) x 780(h) x 80(d)
Dimensions (mm) Open 1350(w) x 780(h) x 40(d)
Weight (kg) 24
On an average day, you can expect approximately the following amperage into your battery:
Average daily sun hours 5.5hrs
Average daily current to battery Approx 35 + amp hours
Anticipated run time for a typical 50 Litre portable camp fridge (assuming 50% depth of discharge to your 100 amp hour battery)
Up to 3 days
Test Conditions 1000W/m² , AM1.5 , 25°C
