Description

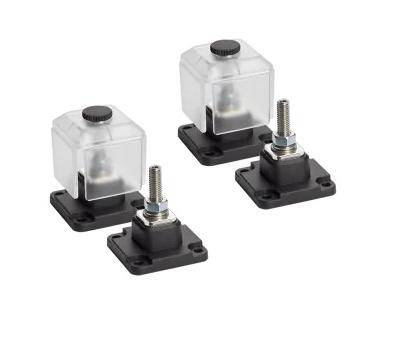

The Enerdrive DC Modular M8 single insulated stud is designed for distributing high DC currents between cables and other DC Modular components. It can suit DC power systems in 4WDs, caravans, campers and boats.
Features
- Stainless steel stud, nut and washers for corrosion resistance
- Fibre-reinforced base material designed for high temperature performance, chemical resistance and strength
- Grid-optimised footprint for space-saving arrangements
- Common interconnection heights allow products to be combined using link plates
- Transparent cover with breakouts for wire access from different directions
- Terminal design allows mirrored cable lug connections
- Top-locked cover provides access to connections within the system
Specifications
- Model: DCM 1xM8 Single Stud
- Part number: DCM-5071160
- Grid size: 1 x 1
- Connection stud size: M8
- Maximum voltage: 50V
- Maximum current: N/A
