Description
Features:
What your Watt Meter can tell you:
Please note, this product does not have a long term memory and is not designed to be permanently installed in-line in your 12V system.
Specifications:
Operating Voltage: 0-60V DC
Current: 0-100A Intermittent (50A Continuous)
Temperature Range: 0-50C Ambient Air Temp
Measurement Update Period: 400mS
Data Queue Sequence Time: 400mS
In Circuit Resistance: 0.001 Ohms
- Real time readings and diagnostics

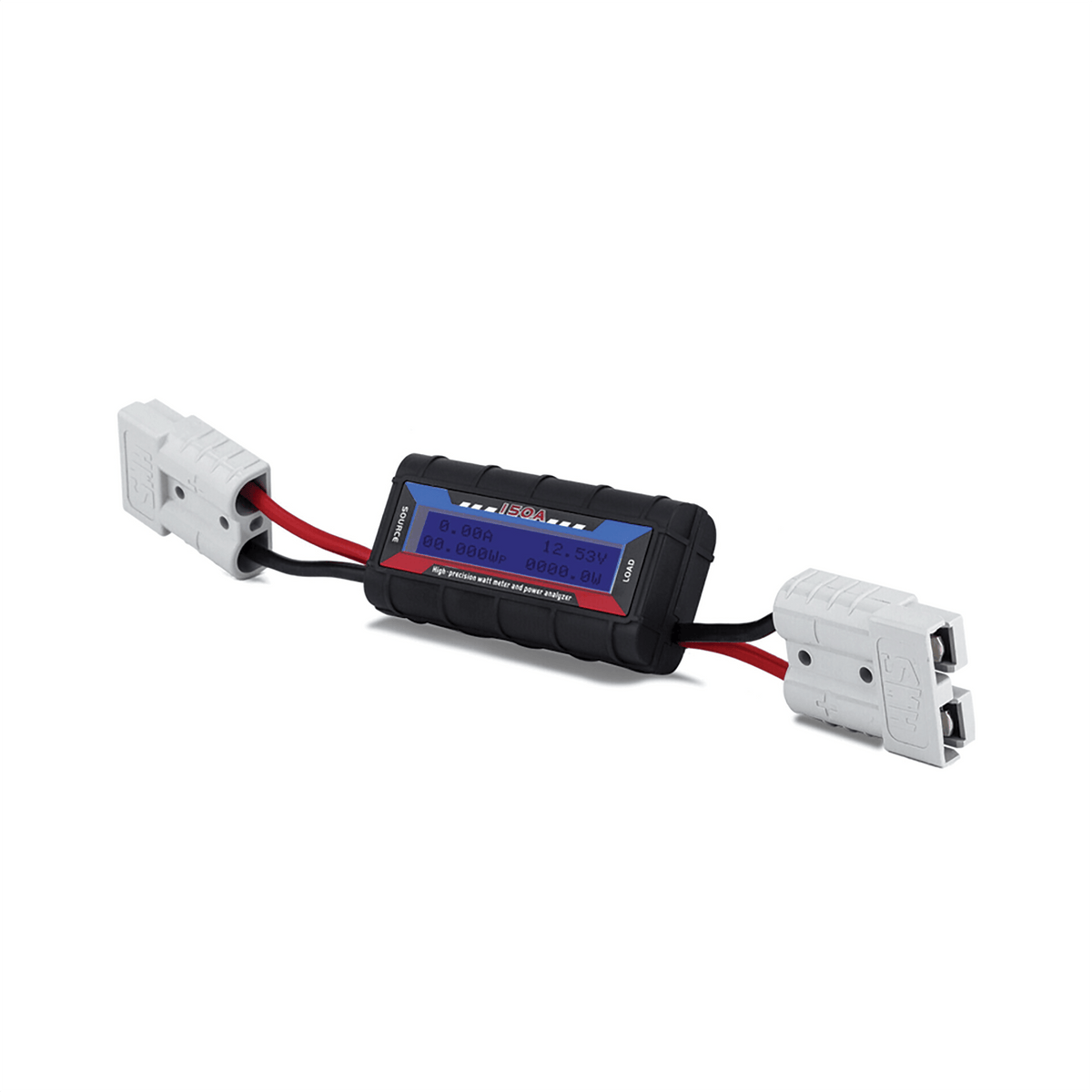

- Anderson-style connectors for a plug & play operation

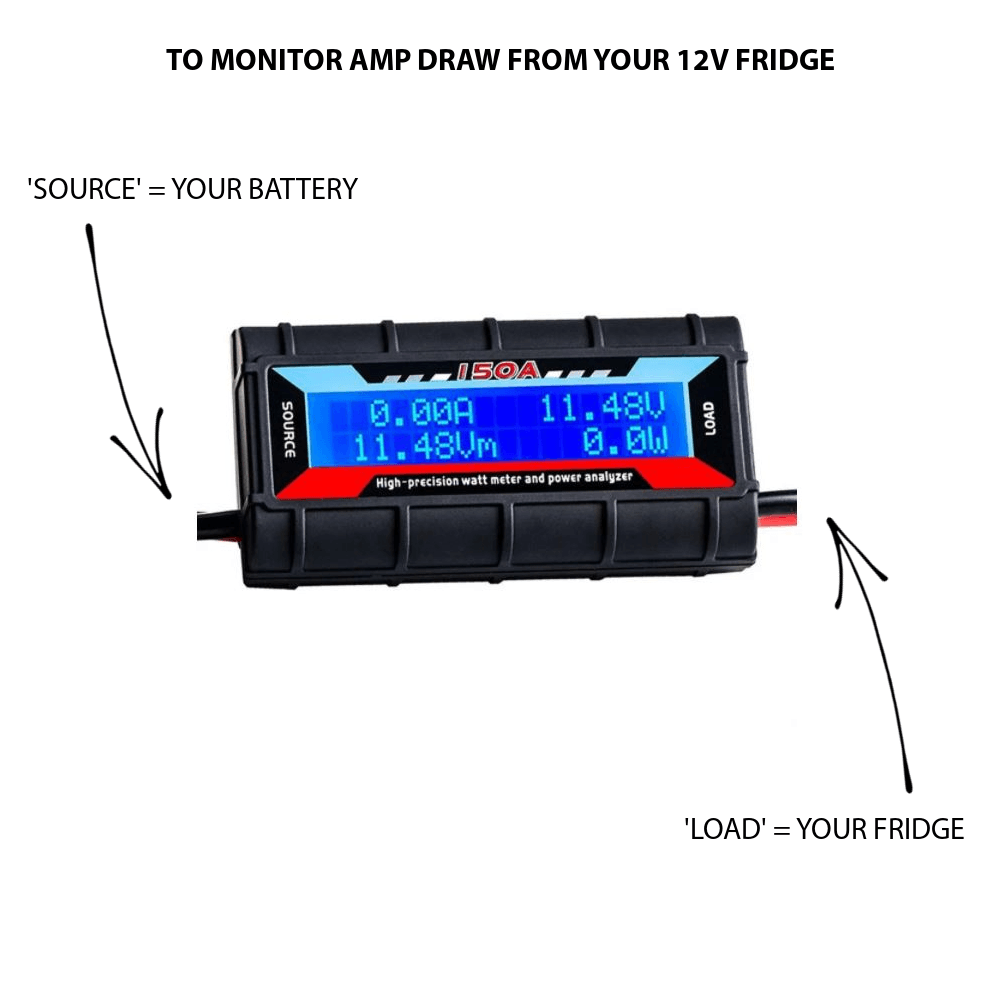

- Measure load draw or solar charge
- Blue backlit digital display
- Super low power draw (0.007mA/hr)
What your Watt Meter can tell you:
- Current (Amps/A) at the present moment
- Voltage (Volts/V) at the present moment
- Power (Watts/W) at the present moment
- Total Amps (Amp hours/Ah) since device initialized
- Total Power (Kilo Watt hours/KWh) since device initialized
- Highest Voltage Maximum (Vm) since device initialized
- Highest Power Peak (Watt Peak/Wp) since device initialized
- Highest Current Peak (Amp Peak/Ap) since device initialized
Please note, this product does not have a long term memory and is not designed to be permanently installed in-line in your 12V system.
Specifications:
Operating Voltage: 0-60V DC
Current: 0-100A Intermittent (50A Continuous)
Temperature Range: 0-50C Ambient Air Temp
Measurement Update Period: 400mS
Data Queue Sequence Time: 400mS
In Circuit Resistance: 0.001 Ohms
Specifications
| Dimensions | 43mm x 84mm x 25mm (LxWxH) |
|---|---|
| Warranty | 1 Year |
| Weight | 0.14kg |
