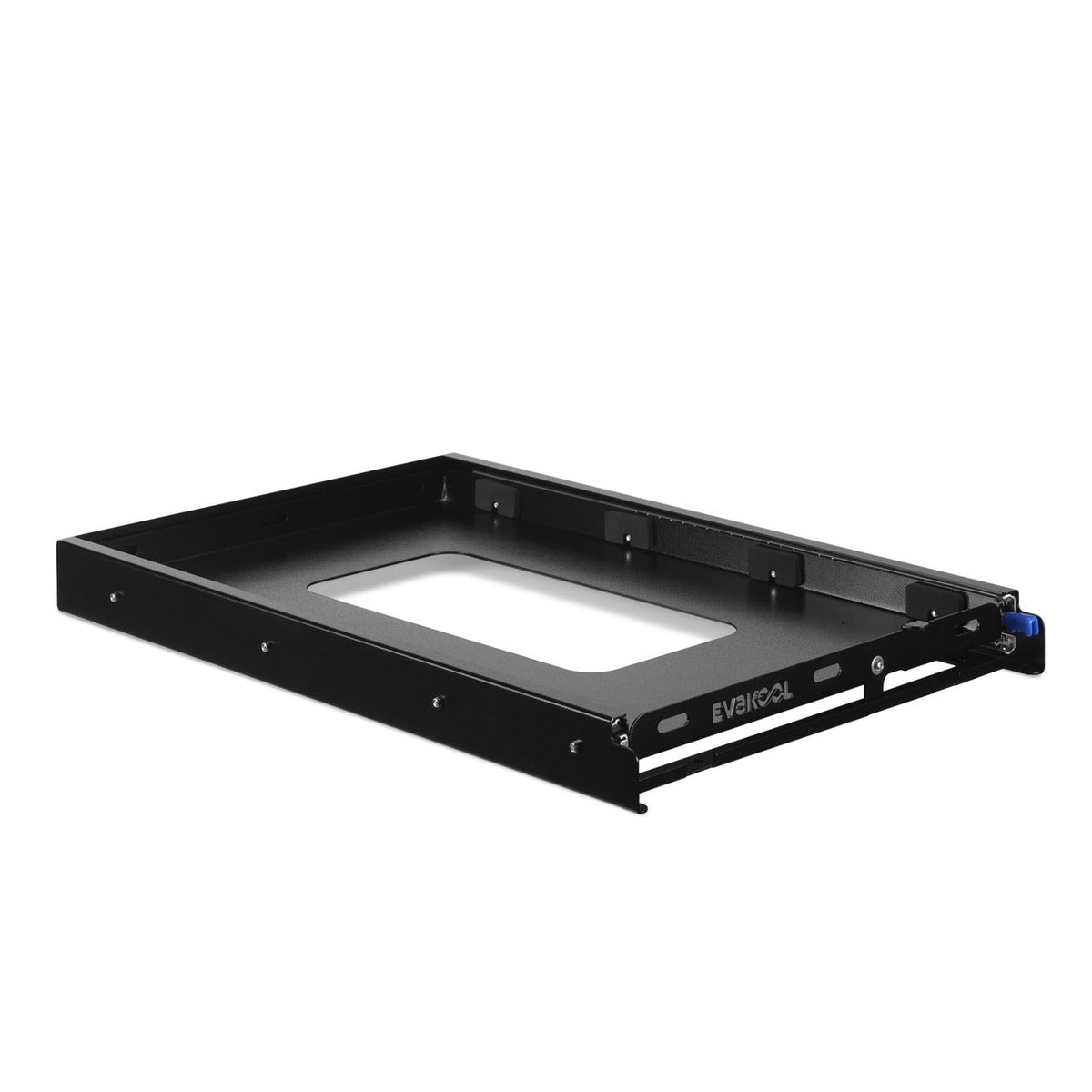

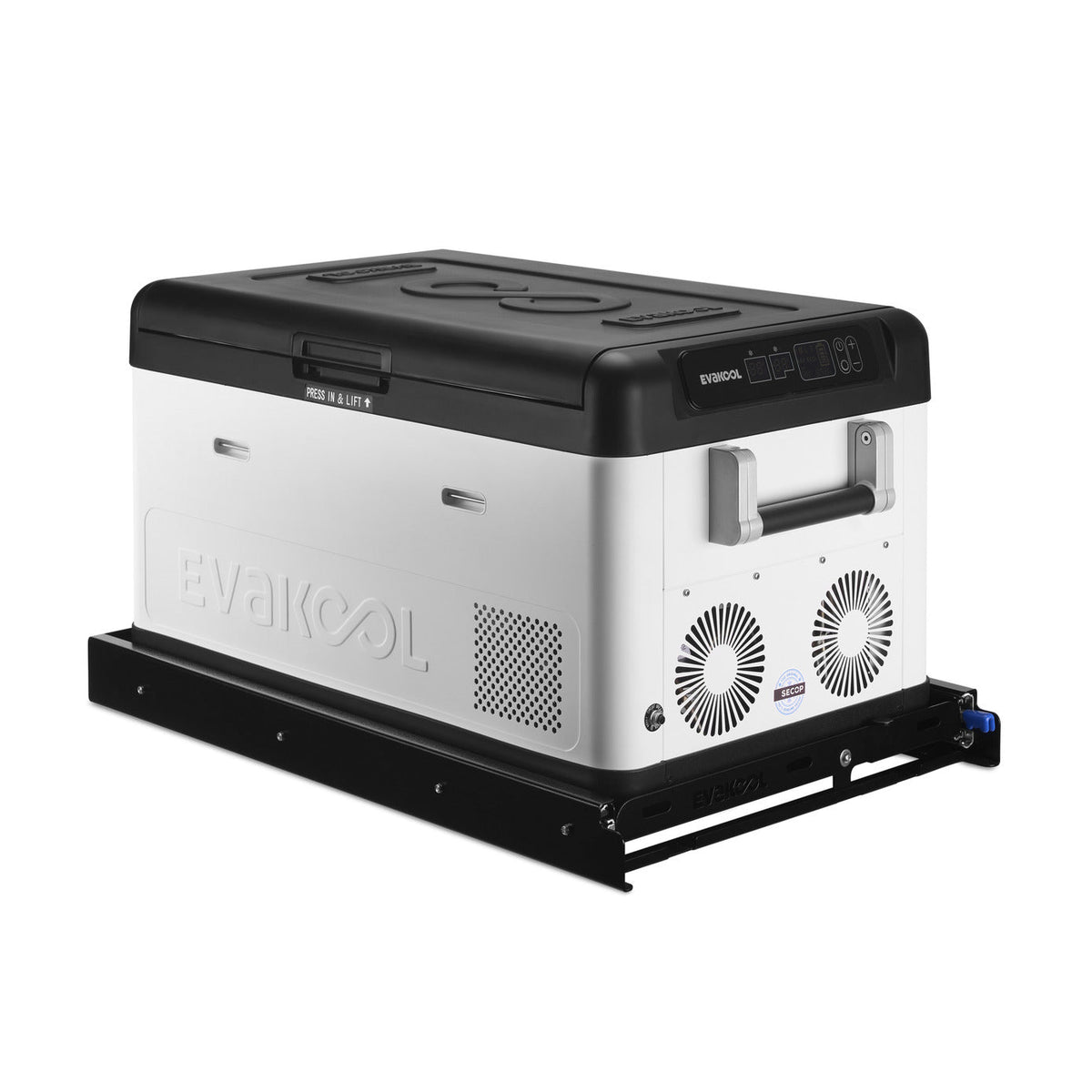

EvaKool Fridge Slide - Small

• Design: Australian conditions
• Surface: Anti-slip
• Material: Black powder coated steel
• System: Self-locking
• Load Capacity: 80kg

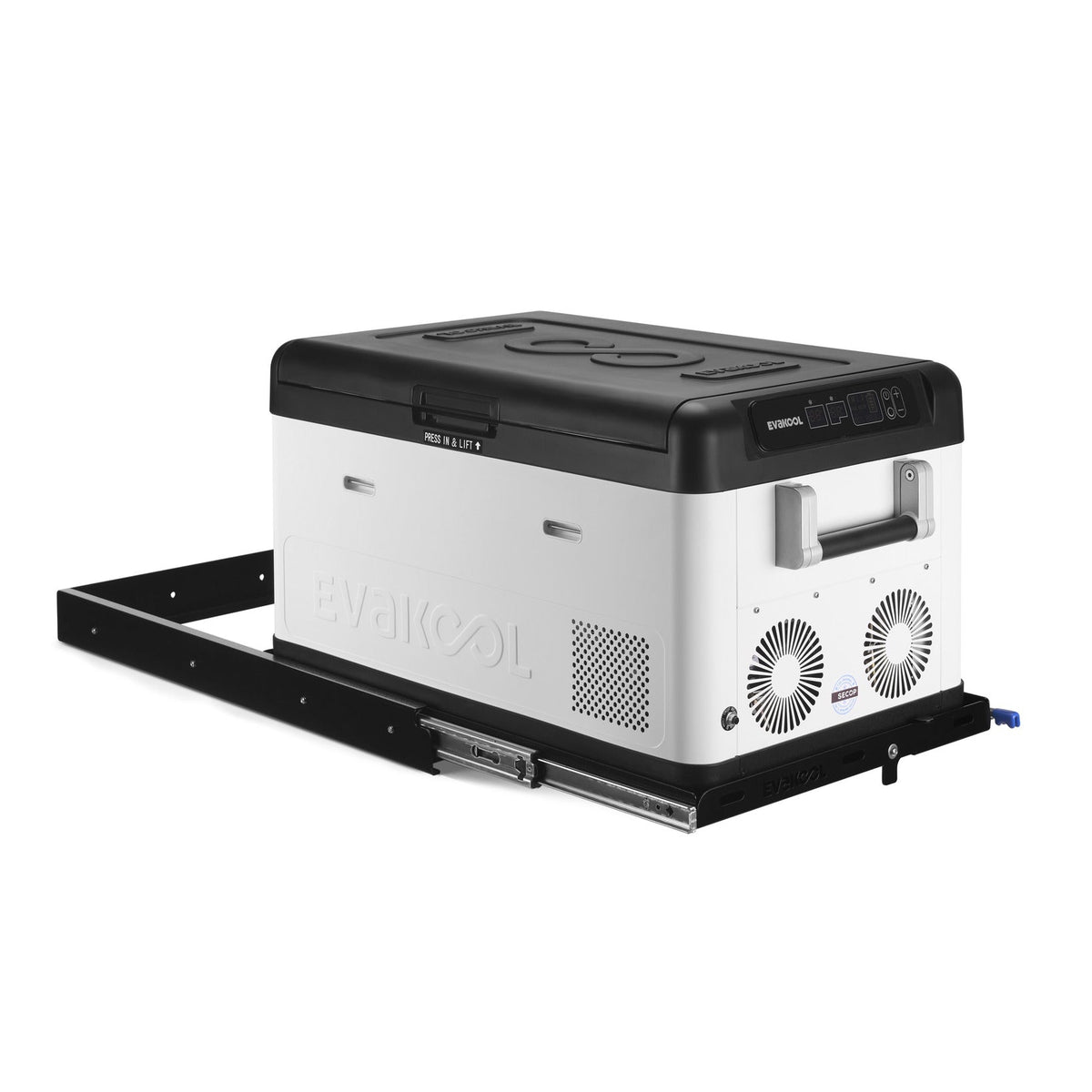

• Slide Extended Length: 1475mm
• Compatibility: DU250-DZ, DU265-DZ, DU47-SZ, RFE47-FF, E060, DC42, G50, GFM055, KM55, KM80, RFE40-FF, RV38-RR, TMDZ-50, TMDZ-60, TMDZ-70, TMX35, TMX45, TMX50, TMX55.

These notes ensure that your EvaKool fridge slide integrates seamlessly with your existing setup, reflecting the true Australian spirit of adaptability and resilience.

• Please allow an additional 30mm to your total fridge height when using the fridge slide.
• RFE82-FF features a 170mm overhang due to the motor compartment.
• RFB110-FF features a 75mm overhang due to the motor compartment.
• For RFE82-FF & RFB110-FF, the bung end must be at the front of the fridge slide.
• For TMDZ80 & TMDZ95: If your fridge doesn’t have an Anderson style plug as standard and only has a regular 12V plug, you will need to raise the fridge to accommodate access to the 12V plug.
• The above suggested compatibility is for standard fibreglass builds only.
• Both Large and Small slides have an 80kg load capacity.

Specifications

Capacity	80kg
Dimensions	External Size: Length: 775mm Width: 520mm Height: 70mm Internal Size (fridge tray): Length: 720mm Width: 450mm Height: 40mm
Warranty	1 Year

What's in the box

1x EvaKool Fridge Slide - Small

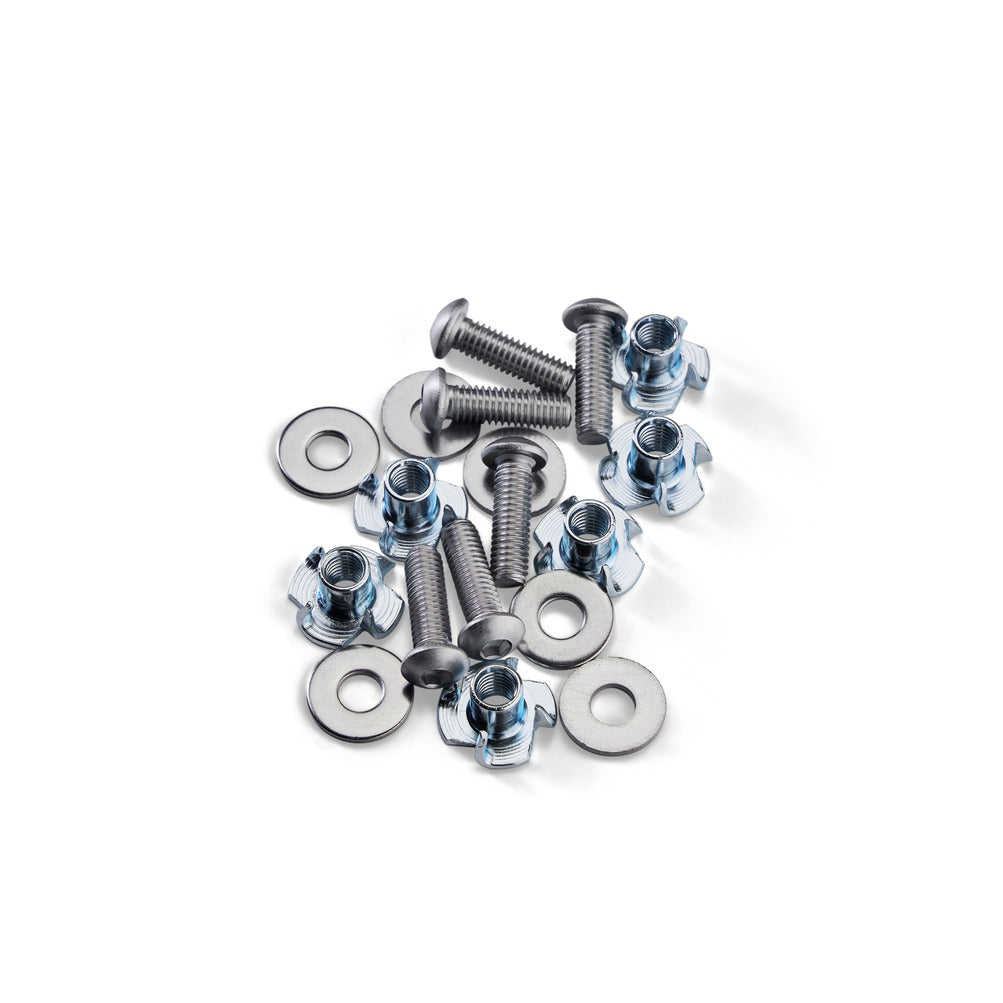

1x Hardware

1x EvaKool Fridge Slide Manual
