Description

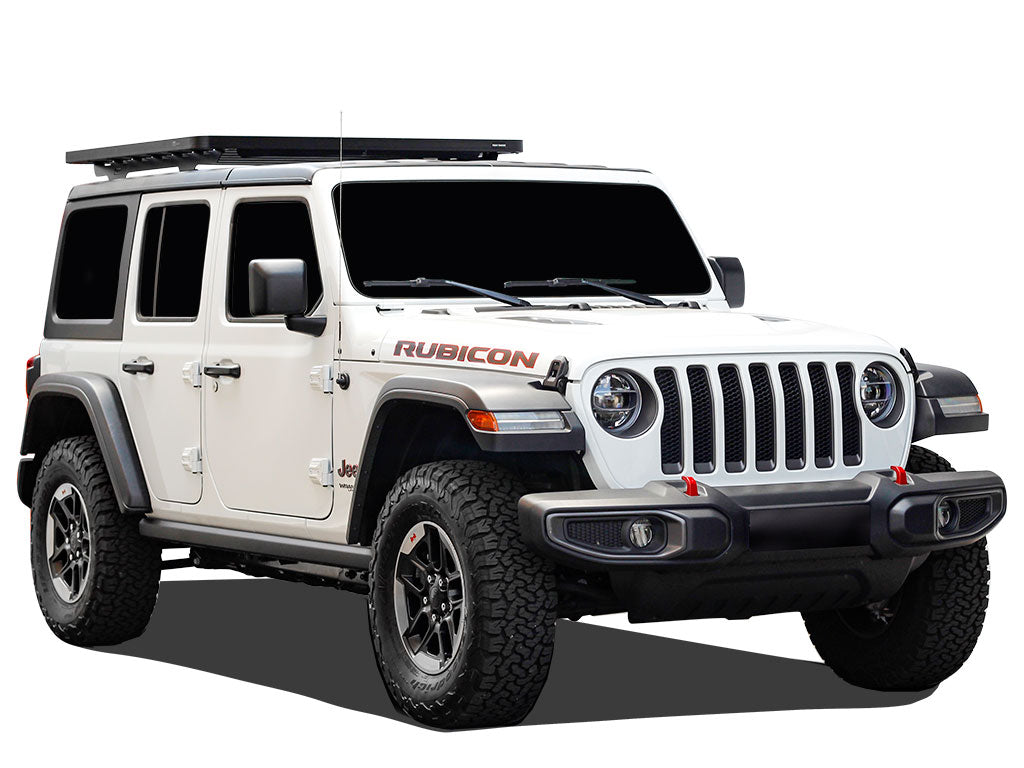

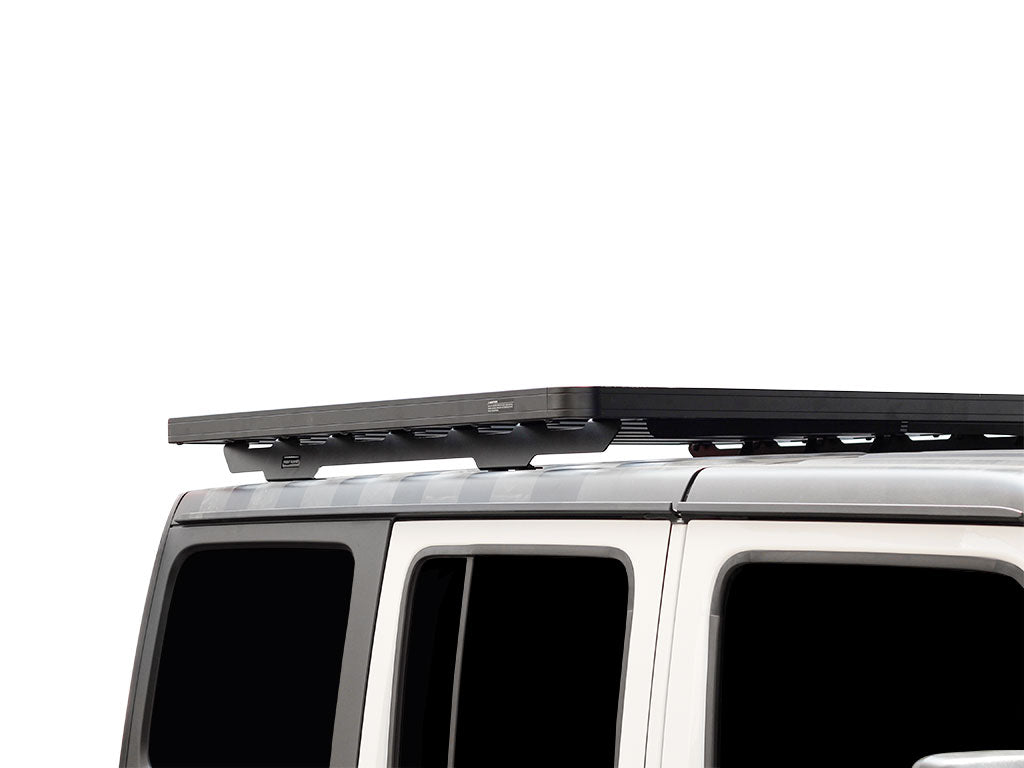

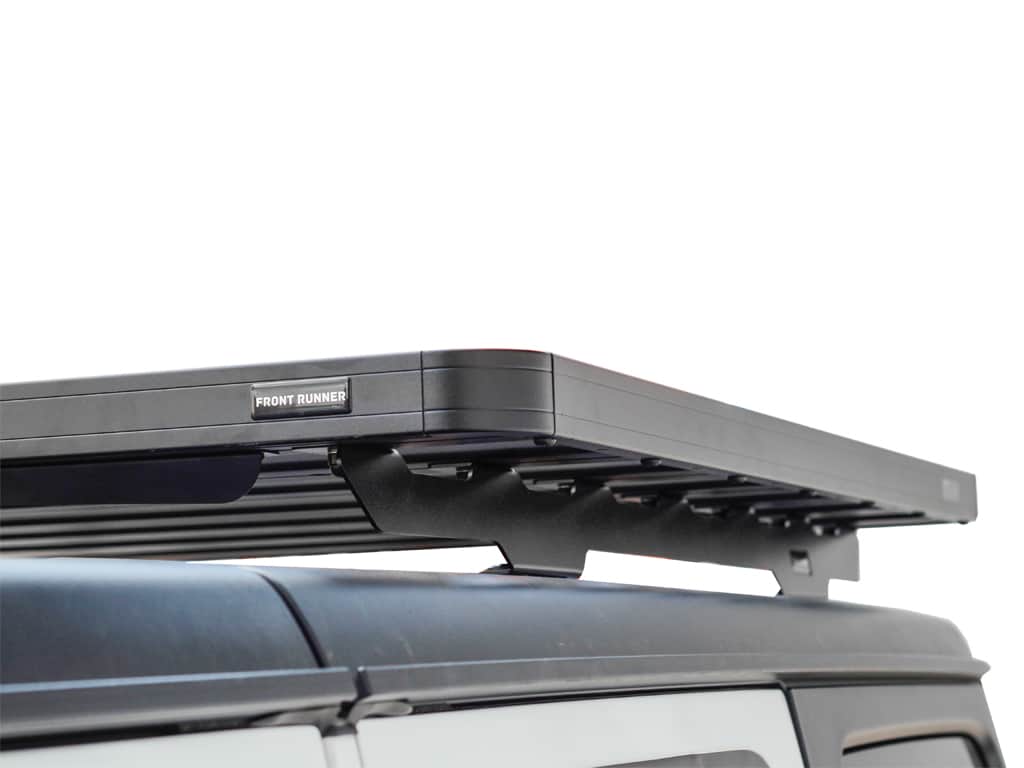

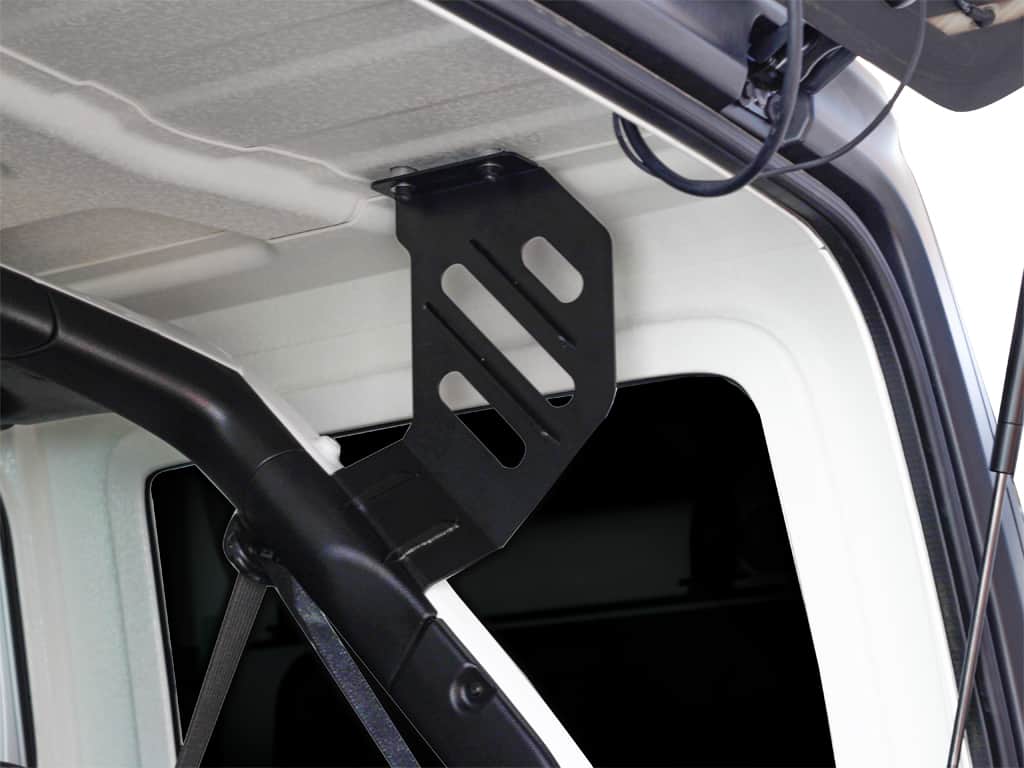

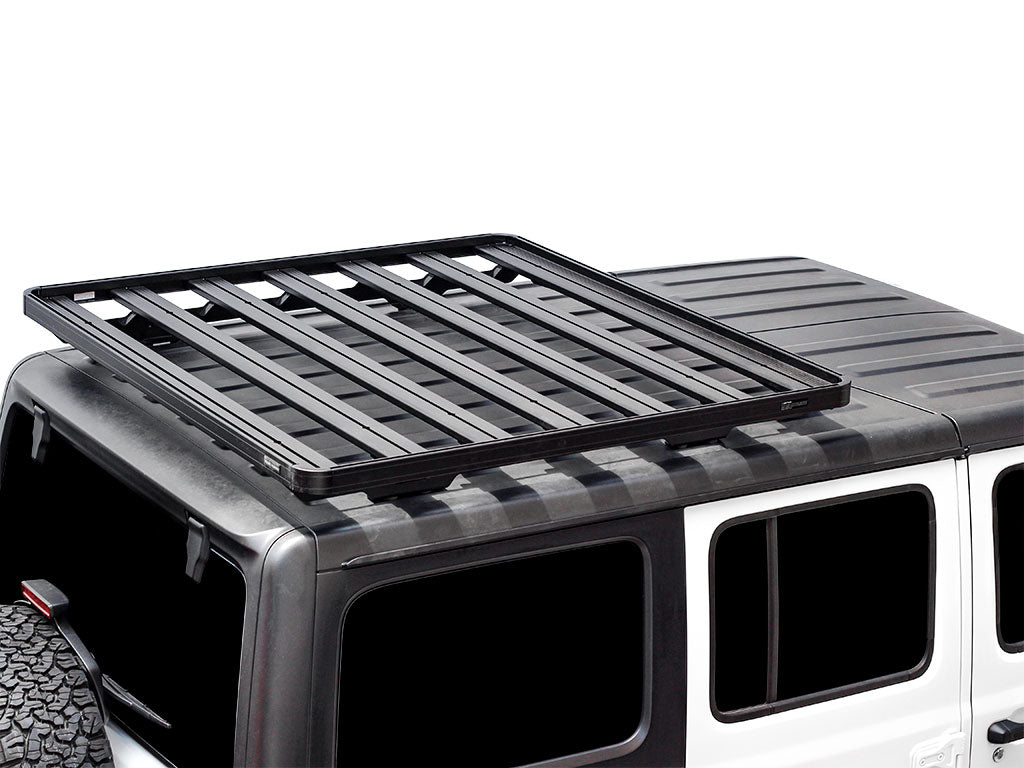

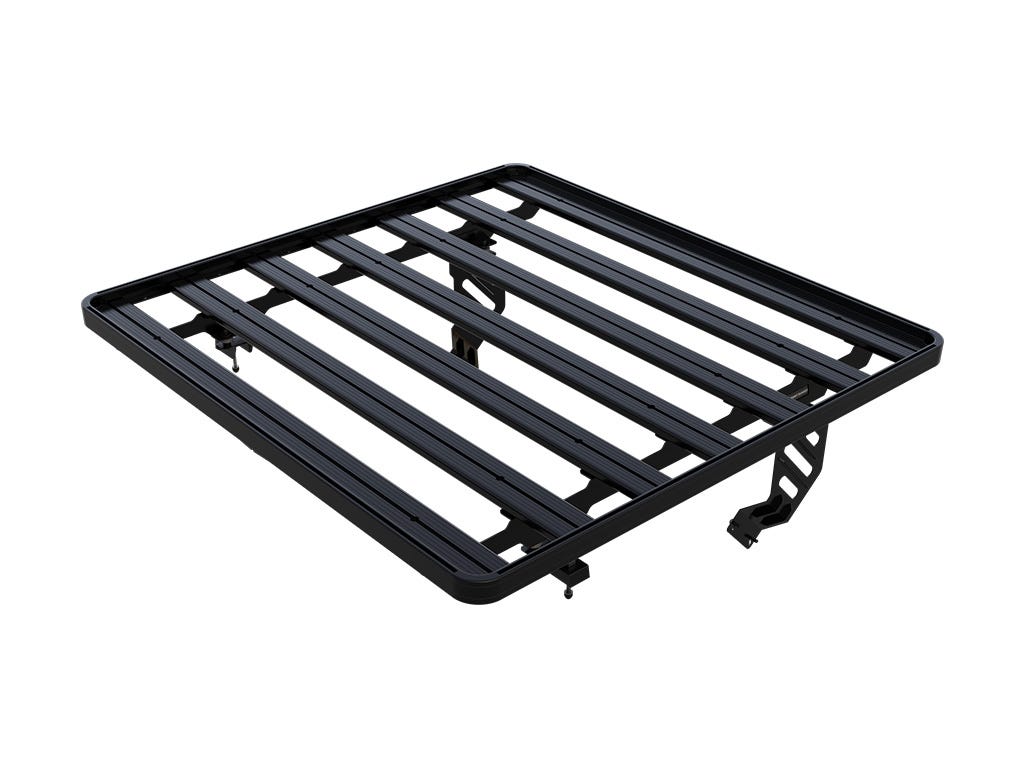

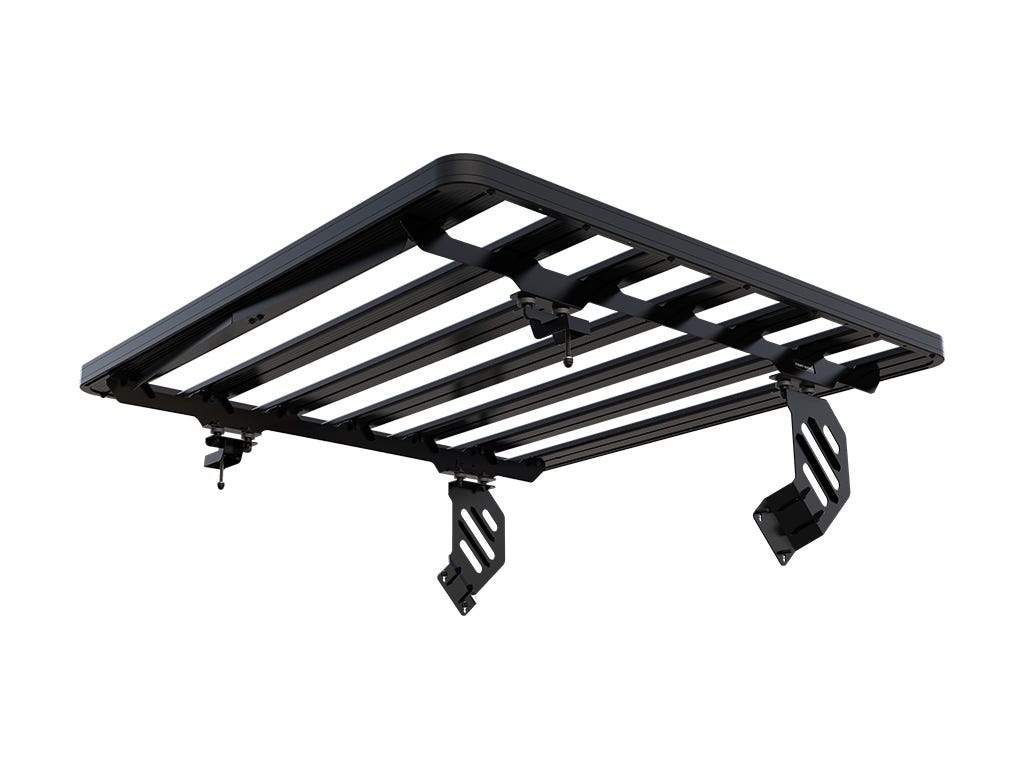

This Slimline II 1/2 rack kit contains all the components needed to mount the Slimline II cargo carrying rack to a Jeep JL 4 door including the Slimline II tray (1425mm x 1358mm), the Jeep Extreme Mounting System and a Wind Deflector. Drilling is required for installation. KRJW023T - Jeep Wrangler JL (2017-Curr) 1/2 Extreme RR Kit Consisting of:1 x FAJL002 - Jeep Wrangler JL (2018-Current) Foot Rails - by Front Runner 1 x FAJL003 - Jeep Wrangler JL 4 Door (2018-Current) Inner Brackets - by Front Runner 1 x RRSTJ07 - Slimline II Tray - 1425mm(W) X 1358mm(L) - by Front Runner Material used:Black epoxy powder-coated T6 aluminium 3CR12 Stainless SteelApproximate Installed Weight 29kg (64lbs)The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.To determine the approximate height from your vehicle��s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Legs to determine the height of the rack from your vehicle��s rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.Shipping Dimensions:Width455mm (18)Length1610mm (63)Height 255mm (10)Shipping Weight:Weight33.8kg (74.4lbs)
