MT 2.0 Ford Ranger PX1 PX2 2011-2018 Strut Shock Kit 4-5 Inch

Carbon OffroadSKU: MT20-FORD-RAN-PX1-2-4INCH

Price:
Sale price$1,256.50

Description

SHOCKS WILL BE SETUP WITH COILS TO SUIT BAR AND WINCH AT APPROX 40MM LIFT. PLEASE MAKE CONTACT WITHIN 24 HOURS OF SALE TO REQUEST A DIFFERENT SETUP.

PLEASE NOTE THIS SHOCK KIT REQUIRES A FULL 4-5 INCH CROSSMEMBER DROP KIT TO INSTALL THESE SHOCKS. THEY DO NOT FIT IN A STANDARD VEHICLE.

Carbon MT 2.0 Premium Monotube Performance Strut and Shock Absorbers.

If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.

We have spent many years developing a ride quality that will give you both comfort and control.

Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.

Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.

Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km

You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control

Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.

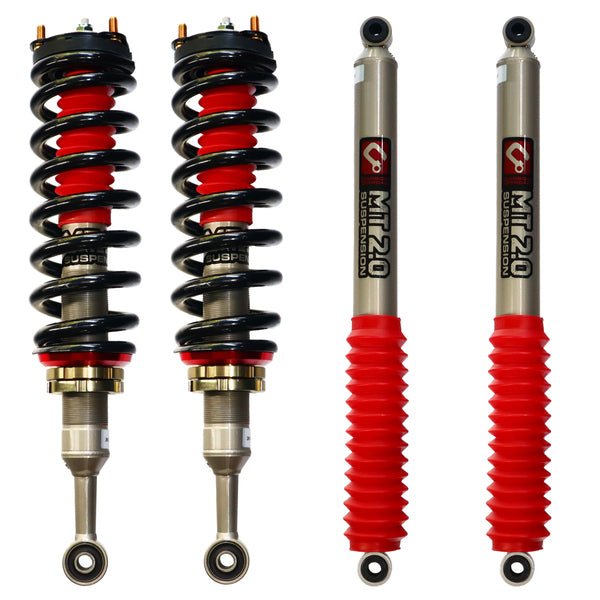

What You Get -

  • 2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
  • 2 x Rear Carbon MT 2.0 Shock Absorbers - Includes rubber boots & bushes.

Carbon MT2.0 Monotube Front Struts - Comfort design valving

  • Front Struts are adjustable up to 4 inches of lift
  • The optimum ride quality is achieved at 2-3 inches of lift.
  • Please adjust your struts using the supplied C spanner
  • Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)

Carbon MT2.0 Monotube Rear Shock Absorbers - Comfort design valving

  • Rear shocks are long travel and suit a 2-3 inch lift
  • Shock boots must be used to prevent damage to shock shaft
  • The shock absorber must be installed with the shaft facing downwards (Inverted design for improved performance)



Carbon MT2.0 Monotube Shock Specifications

  • Monotube Design- Maximum fluid volume and control
  • IFP -Internal floating piston for added comfort and control
  • H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
  • 52mm Outer Body - Increased fluid volume to prevent fade and improve control
  • 20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
  • Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
  • 46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
  • Quality Bushes - HIgh quality pure rubber bushes
  • Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
  • Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal  1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
  • Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
  • Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
  • Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
  • High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
  • Complete with concertina dust boots

Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.

Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.

We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.

Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
