Roadsafe 4wd Bottle Jack Ram Top Plate - Axle - SB117

Save $3.60
RoadsafeSKU: SB117

Sale price$45.40 Regular price$49.00


Roadsafe 4wd Bottle Jack Ram Top Plate - Axle - SB117


    General Information. Please Note that not all items discussed below are included in this kit.

    What are Ram Extensions and why do I need them?

    Four wheel drivers with lifted vehicles are often faced with quite a significant dilemma when out in the bush with a flat… their factory bottle jack is no longer effective!  They have lifted their vehicles 50-100mm and the bottle jack ram does not extend high enough to get the tyre off the ground.

    To get around this the current options are to:

    • Get a lump of wood or cribbing blocks to place under the bottle jack (dangerous because instability could result in collapse)
    • Purchase & carry a new bottle jack/trolley jack with a ram length extendable to suit their lift (expensive & big/heavy to carry)
    • Use a High Lift jack or similar (unstable at height, sometimes difficult to use, not everyone has one)

    Roadsafe  ‘Bottle Jack Extensions & associated Bottle Jack accessories’ are aimed at making the process of jacking up vehicles a much safer and more secure one.

    How to the Ram Extensions work?

    Roadsafe Bottle Jack Extensions are sized to slip over the ram of the standard bottle jack and basically act as a ram extension, adding length to the ram so the jack can sit firmly on the ground while the load is lifted. The parts slot snugly together, which makes the jacking option much safer and less likely to tip and become unstable.

    The standard extensions have been designed with 35.5mm ID so suit for ram diameters of between 28-35mm (6 ton bottle jack typically have a 1.25” (31.75mm) ram diameter).

    What if my bottle jack ram is bigger than 35mm diameter?

    Simple!  There are three ram adaptors available to suit for 35.5mm-39.5mm, 40mm-44.5mm & 45-49.5mm diameters.

    What size are the Extensions and how much additional height can I expect?

    Extensions have been designed allowing for 75mm (3”), 150mm (6”) & 225-305mm adjustable (up to 12”). The extensions have been designed to slot together snugly, so you can interchange the pieces to get the height & configuration required. Using all three extensions together will give 530mm (20”) of extension.  The key is, however, to keep the jacking process a safe one.  Always refer back to safe jacking practices.

    I am using a ram extension, but need a larger surface area on the jacking point.  How do I achieve this?

    Jack pads have also been included in the range. The jack pads simply slot onto the ram extensions (or adaptors) to provide a flat 100x100mm head, or an angled head suited for axle tubes and other rounded surfaces (ie. rock sliders etc.) up to 80mm in diameter. The pads increase the jacking stability and serve to distribute the load over a greater surface area to minimize damage to the specific area being lifted.

    My jack footprint is too small, and sinks into the soft sand and mud.  Is there an accessory to fix this problem?

    Glad you asked!  Another issue experienced when jacking, especially in the terrain four wheel drivers take their vehicles (sand, mud, dirt) is the jack sinking into the ground under load. To alleviate this the smaller footprint of the jack needs increasing. Included in the program is an upgraded base plate measuring a whopping 205x460mm.

    The large 205x460mm ‘Big Boy’ plate, has been designed to provide the ultimate in jack stability. The ‘Big Boy’ gives you 940 square centimetres (145 square inches) of jacking safety! The widened & lengthened base is 4 times more stable than the jack on its own, and the size of the base makes supporting loads on soft surfaces very easy – with the footprint up to (depending upon the original jack size) 10 times larger. For example a typical 6 ton bottle jack lifting 2700kgs would have a ground loading of approx. 28kg per square centimetre – but with the ‘Big Boy’ that is reduced to only 2.8kg per square centimetre. The base is shaped with ‘sled’ style ends & convenient handles so it can be easily positioned & carried.

    What does the range consist of?

    The program consists of (at this stage) 9 pieces, including:

    • SB113                    Extension – 75mm (fixed)
    • SB114                    Extension – 150mm (fixed)
    • SB115                    Extension – 225mm-305mm (adjustable)
    • SB116                    Top Plate – Flat

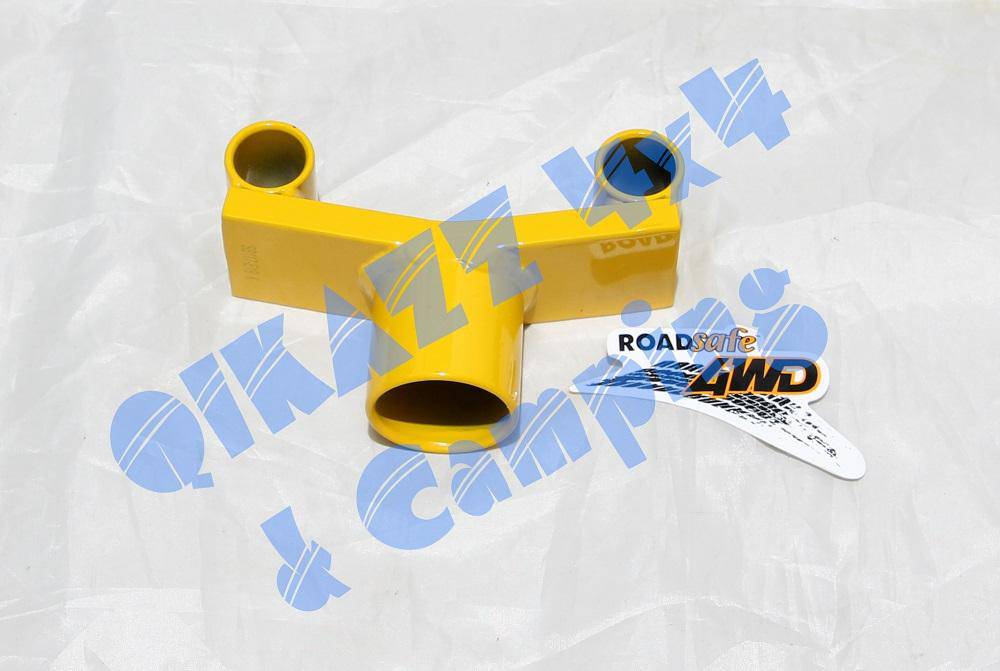

    • SB117                    Top Plate – Axle
    • SB118                    Adaptor – 40mm
    • SB119                    Adaptor – 45mm
    • SB120                    Adaptor – 50mm
    • SB112                    Base Plate – “Big Boy” – 205mmx460mm
