Roadsafe 4wd Diff Drop Kit & Cross Member Relocation Kit for Isuzu DMAX 2020-On - 20mm (40mm + lift)

RoadsafeSKU: DDDMAX20-20

Sale price$365.00


Diff Drop Kit Isuzu DMAX 2020-Onwards

Introducing the new diff drop kit for Dmax & BT50 2020+ with a 40mm lift or more.

This new DDDMAX20-20 moves the diff forward providing more wheel clearance & drops the diff simultaneously correcting the effects of suspension lift allowing for full CV articulation & plunge.

Our new cross member replacement diff drops we can now supply documentation just like our UCA range for engineers to sign off making them 100% road legal.

The DDDMAX20-20 is the diff drop for lifts above 40mm. The main cross member has been designed to have minimal impact on ground clearance while improving on the strength of the factory Isuzu/Mazda unit all while maintaining the OE mounting for under trays or bash plates.

The cross member has been through multiple FEA iterations simulating everything from extreme suspension loading & full vehicle mass ground strikes.

All additional components are CNC machined 6061 resulting in a lightweight & strong product.

This bolt on kit suits the new DMAX & Mazda BT50 platform.

This bolt on kit suits the following

  • Isuzu DMAX 2020-Onwards

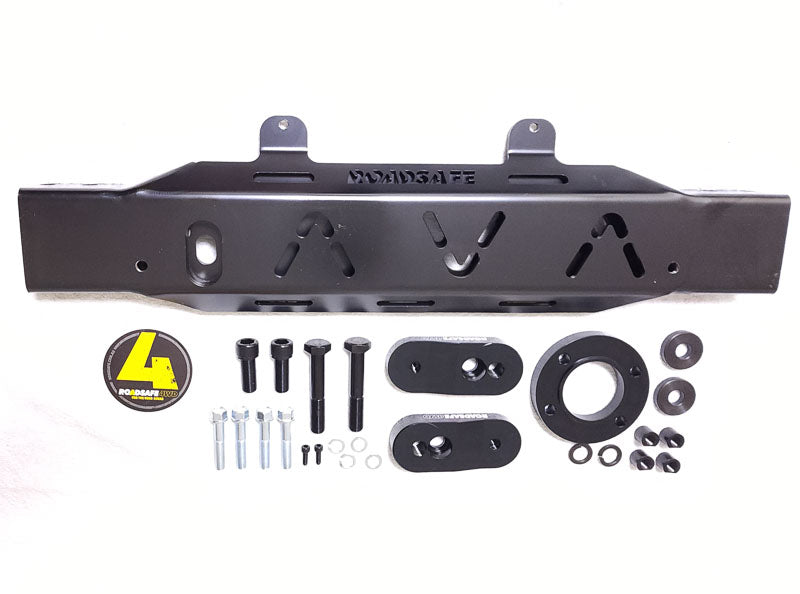

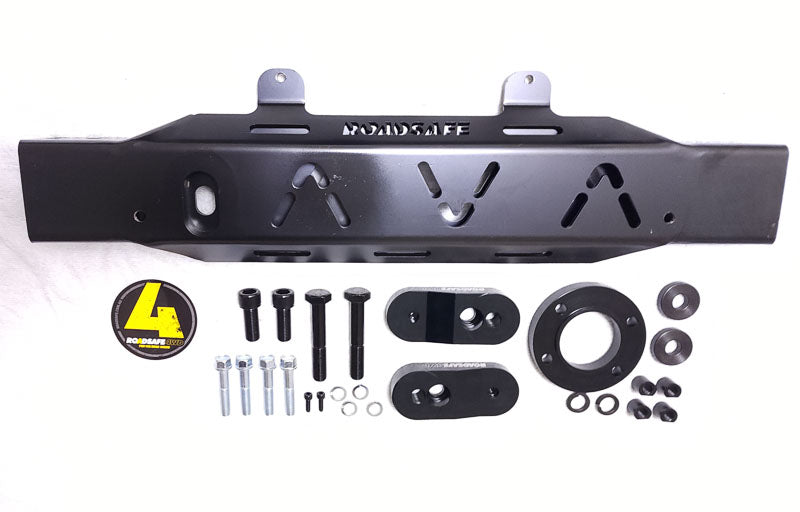

Kits Contains

  • 1 x 20mm Diff Drop Crossmember
  • 2 x 20mm Diff Drop Relocation Spacer
  • 1 x Tail Shaft Spacer
