Stedi 7" TYPE-X Sport LED Driving Lights

Save $10.00
StediSKU: LEDTYPE-X-SRT-7INCH

Price:
Sale price$409.95 Regular price$419.95

Description

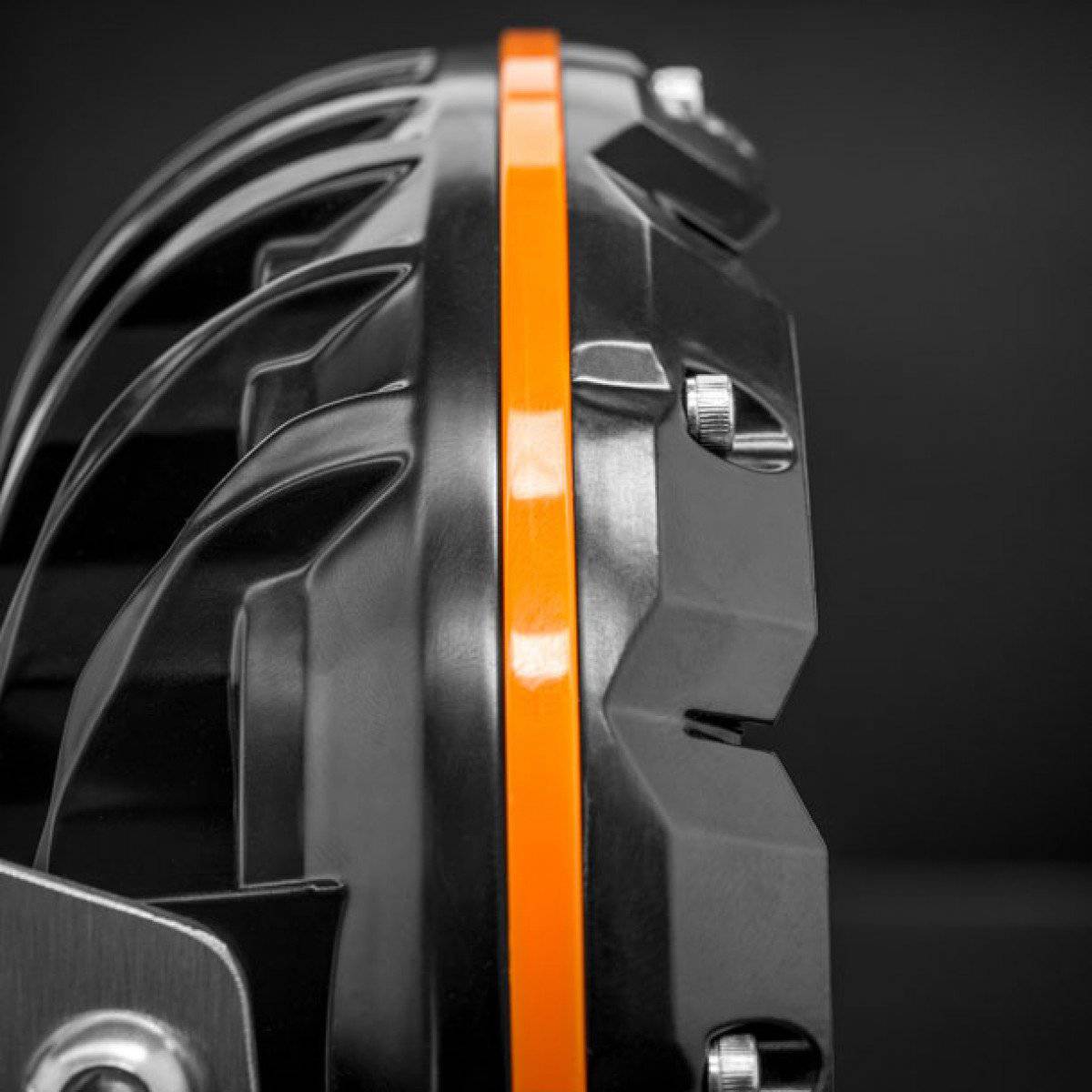

STEDI TYPE-X SPORT 7 Inch LED Driving Lights

Our Type-X LED Driving Lights are the very best representation of our brands' spirit and culture. The performance & quality surpasses that of the most respected players in the industry. At only $419.99 per pair, they also happen to cost $1000 less.



Type X Sport 7 Inch Dimensional Drawing

STEDI Type X Sport 7 Inch Lux Graph

5700 Kelvin (Pure White)

DETAILS



THE NERDY DETAILS

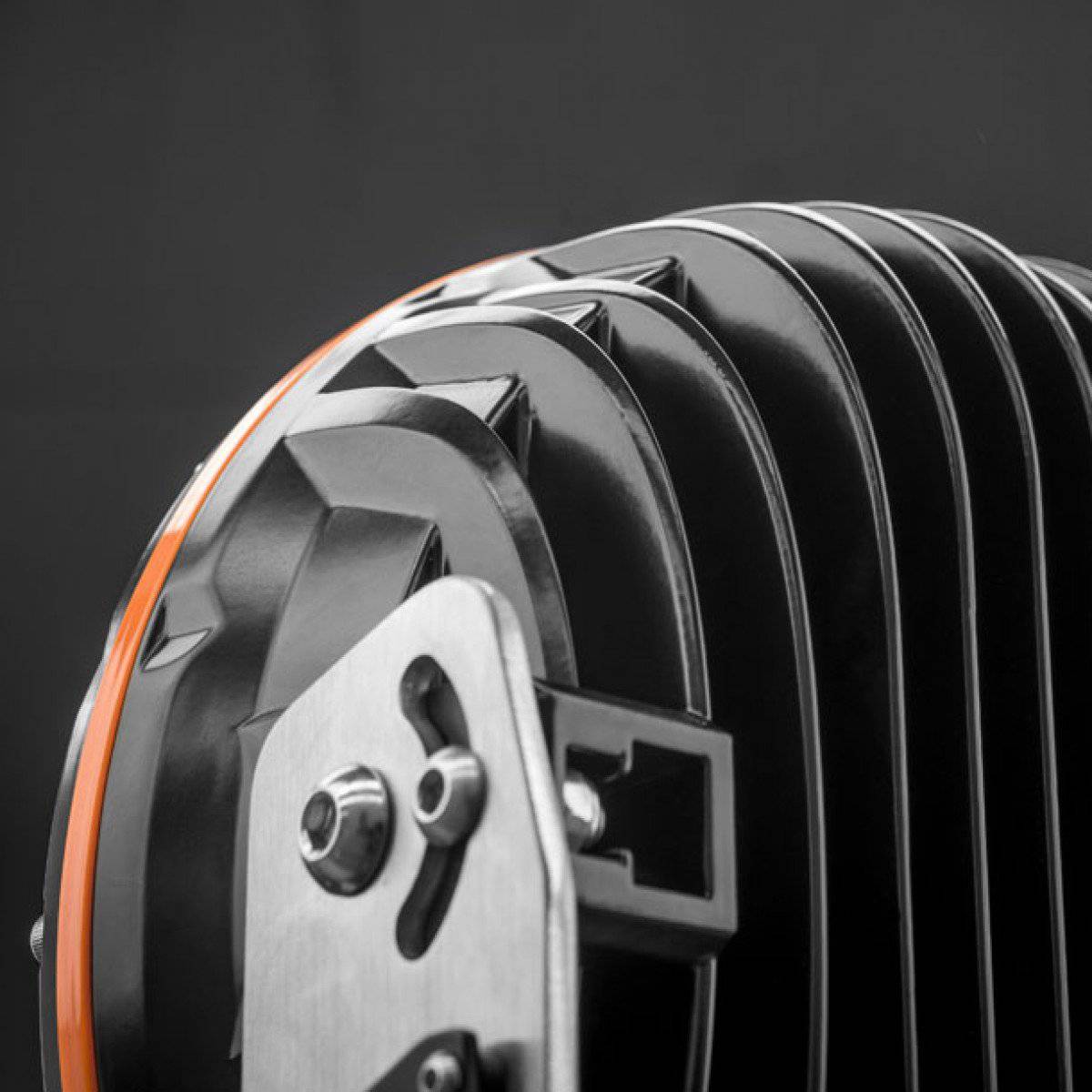

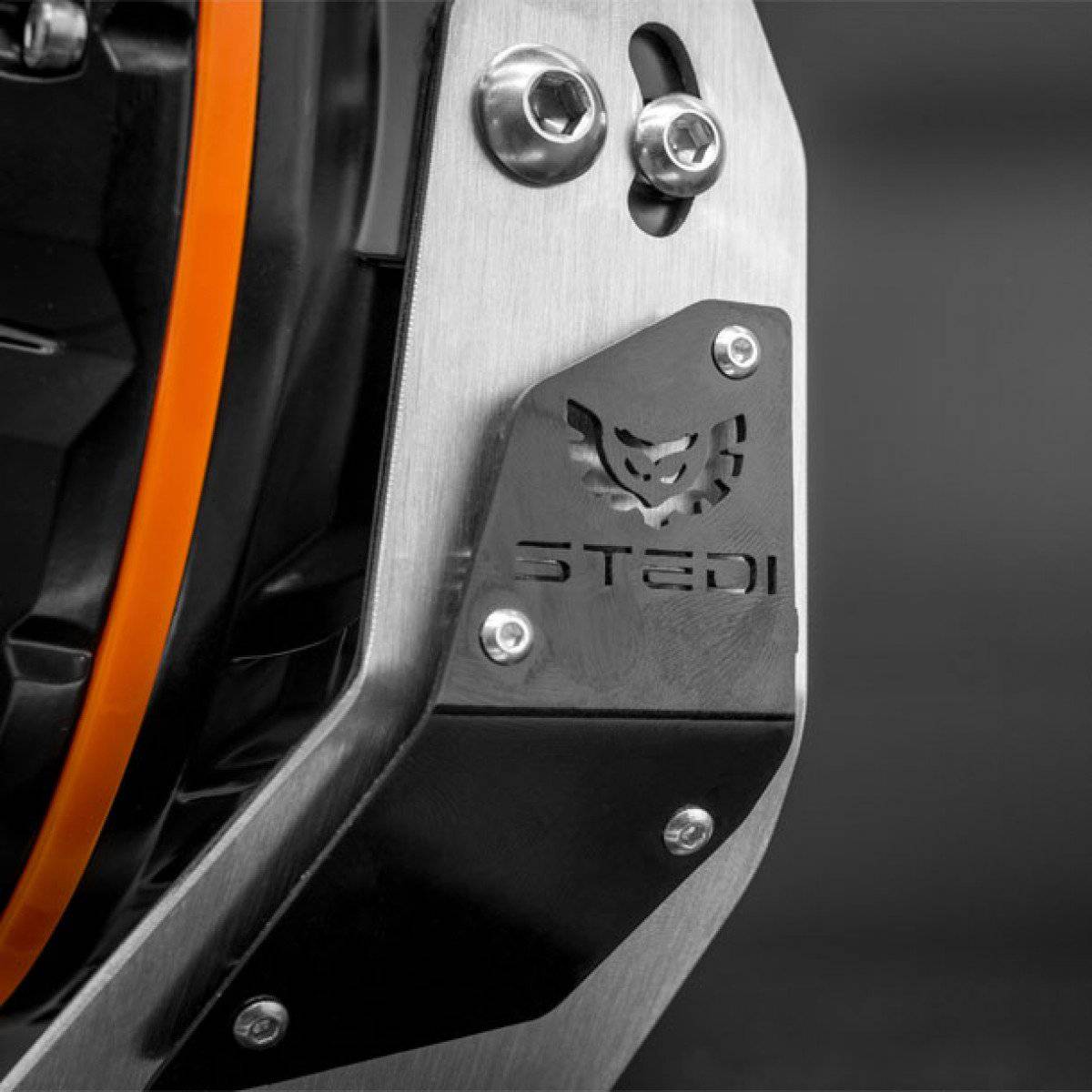

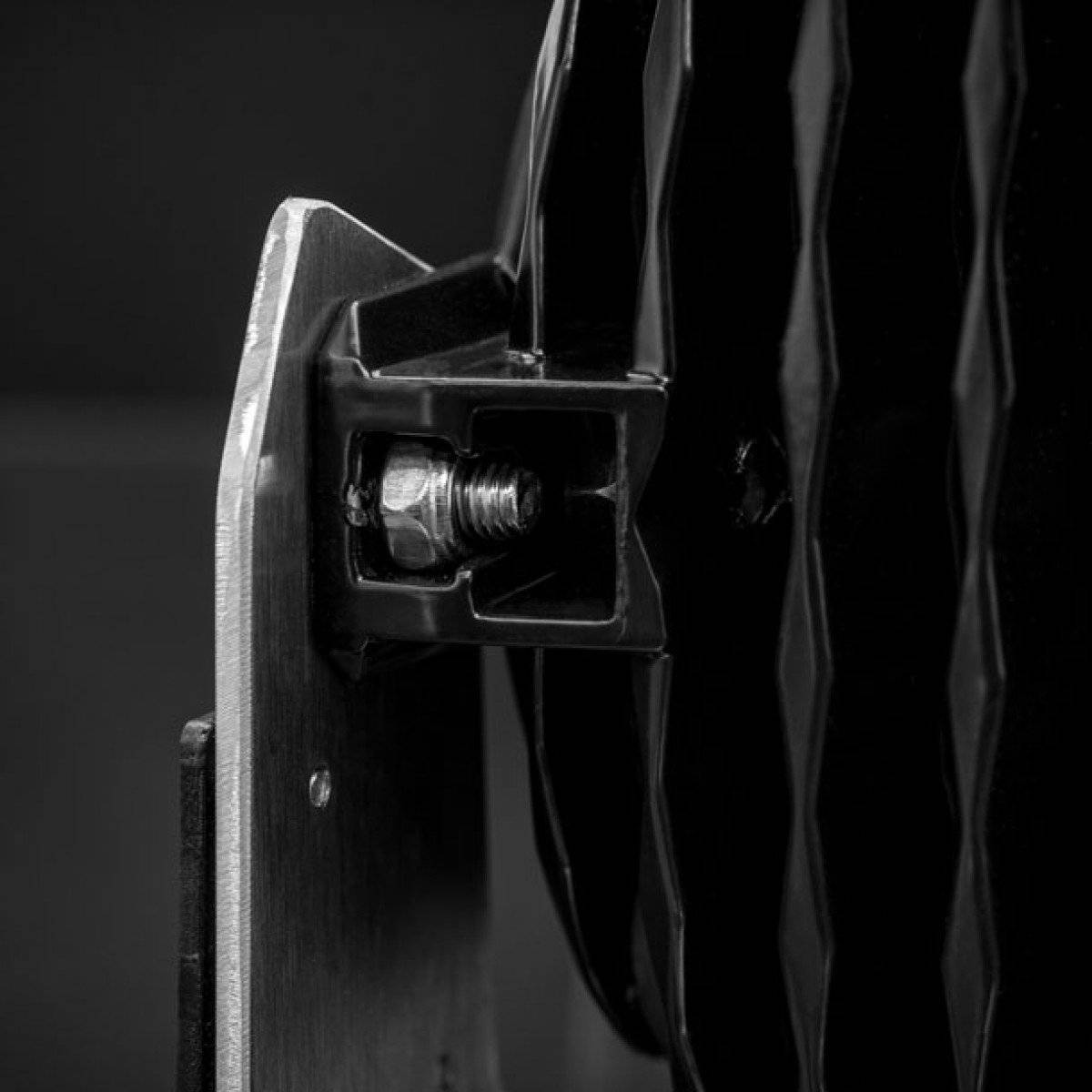

  • 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.

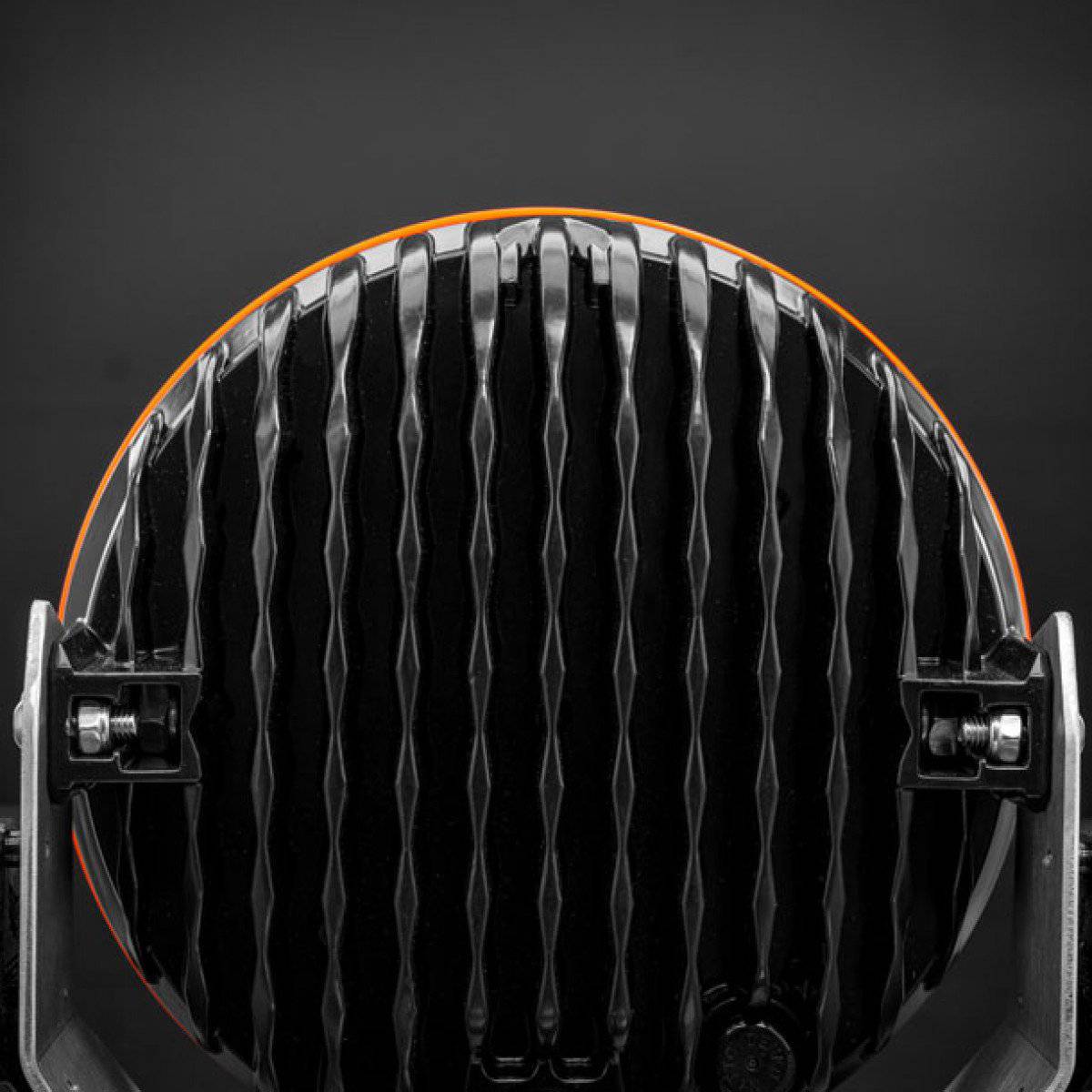

  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
  • 100% Polyester UV and abrasion resistant powder coat
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters

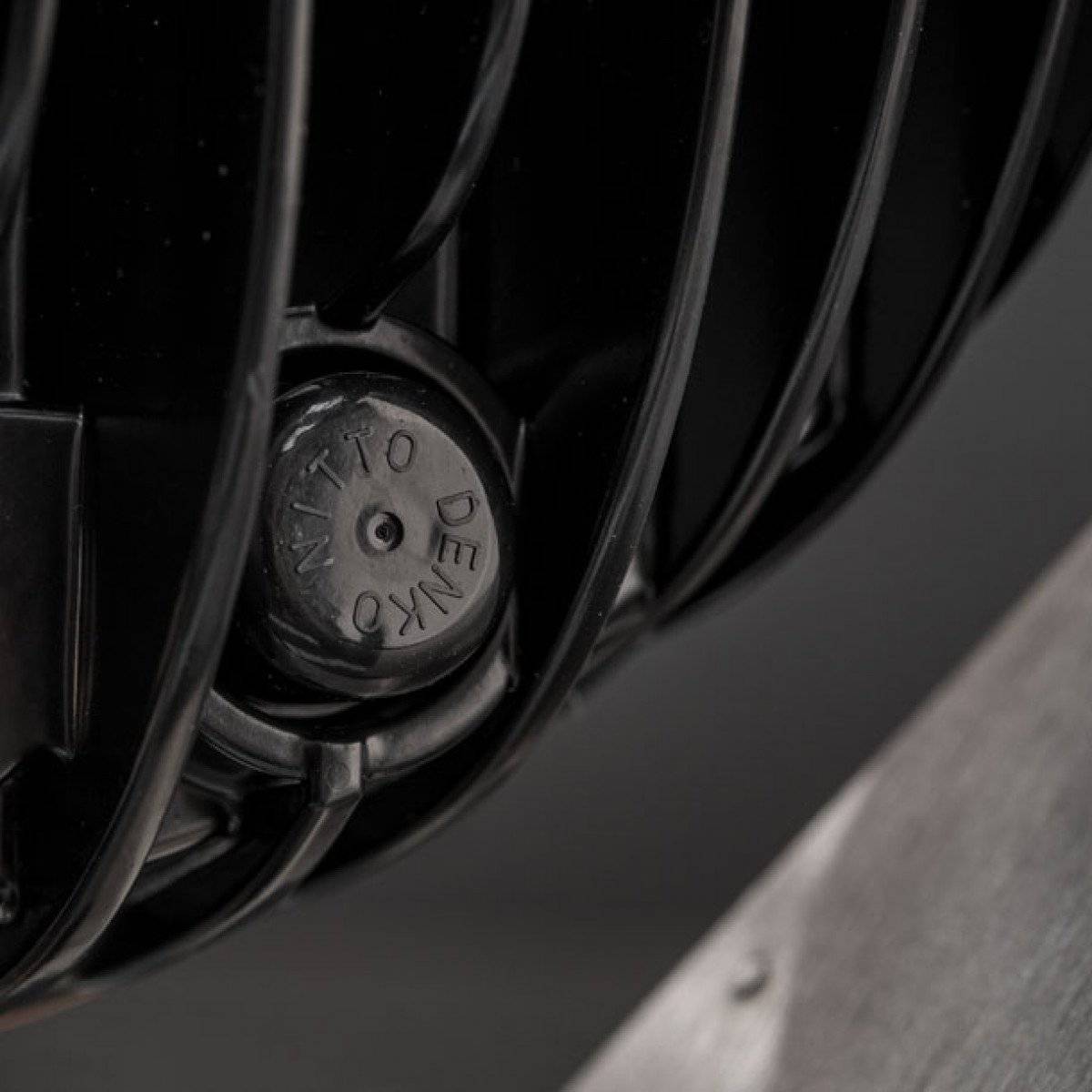

  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
  • Environmentally Sealed Deutsch® DT-2 connector
  • EMI & RFI Suppression circuitry – We guarantee it.

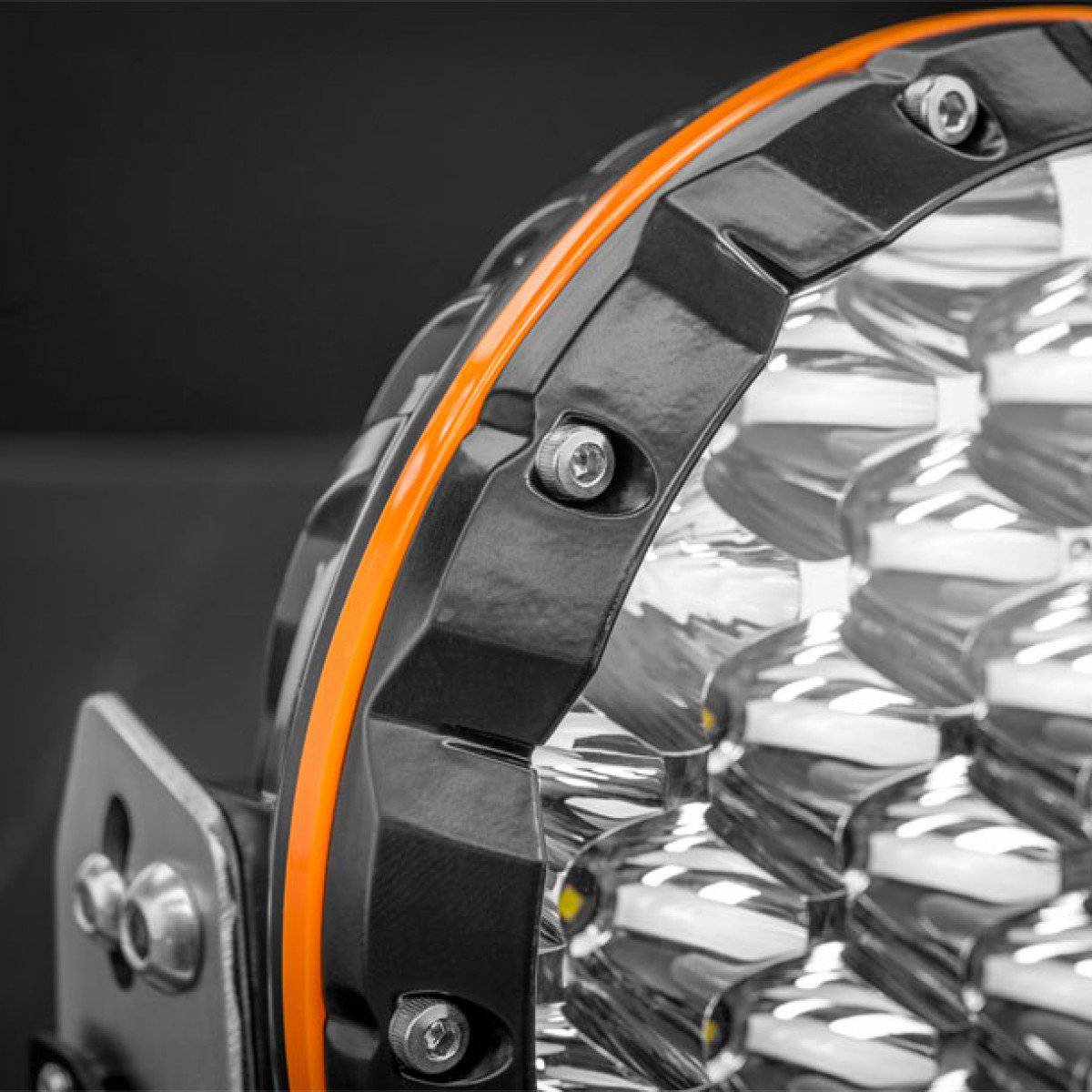

  • Each 7" TYPE-X Sport comprises 32 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.

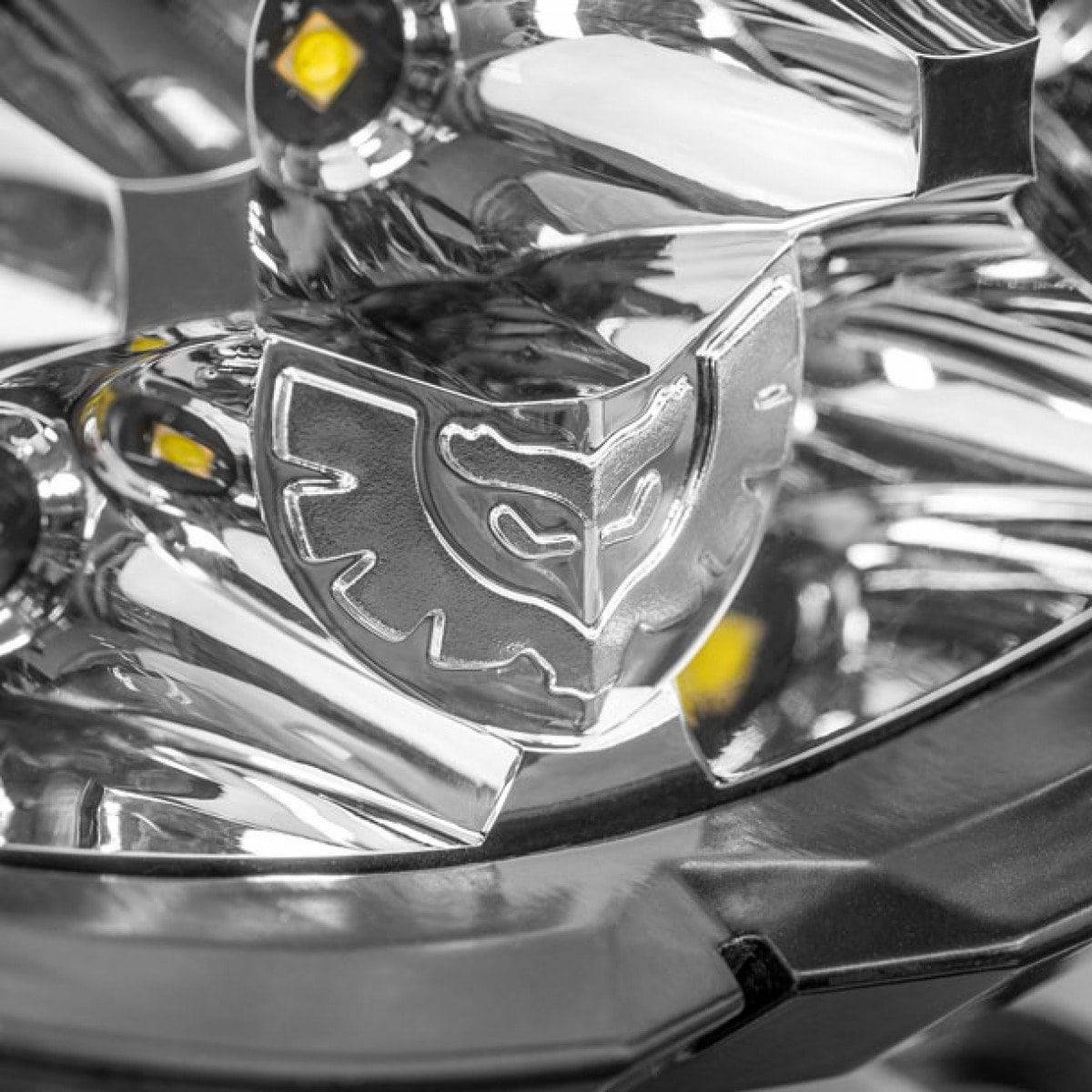

  • 4 wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky.
  • 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)


SPECIFICATIONS


LED 32 x Osram Oslon SSL
RAW LUMENS 16,640 (Pair)
TESTED LUMENS 12,820 (Pair)
AMP DRAW  6.4A @ 13.2v (each)
POWER DRAW 85W (each)
CANDELA
819,200cd
BEAM PATTERN 4 x Spread 28 x Spot Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT)  5700K
VOLTAGE COMPATIBILITY  12v & 24v
LUMEN MAINTENANCE  50,000 LM-80
WEIGHT 2.250kg (each)
PHOTOMETRIC DATA
10 M 8,129 Lx
50 M  327 Lx
200 M 20 Lx
300 M 9 Lx
400 M 5 Lx
895 M 1Lx




WHAT’S IN THE BOX

  • 2 x STEDI 7" TYPE-X Sport

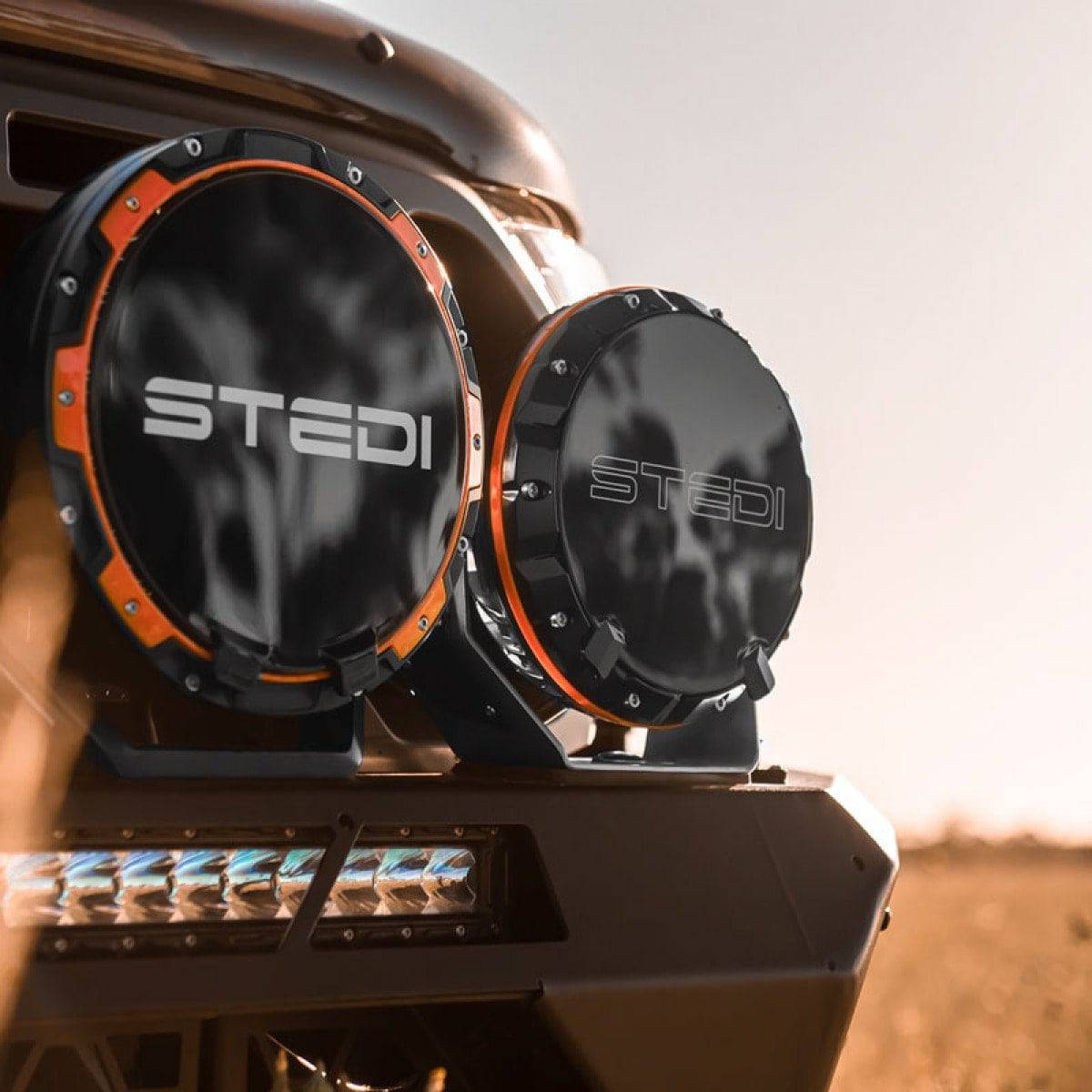

  • 2 x STEDI Black Out Covers
  • 1 x Easy Fit High Beam Wiring with DT-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
  • 3 Series Stainless Steel Nuts and Bolts
  • Rubber Shock Dampener
  • Wiring Instructions
