Description

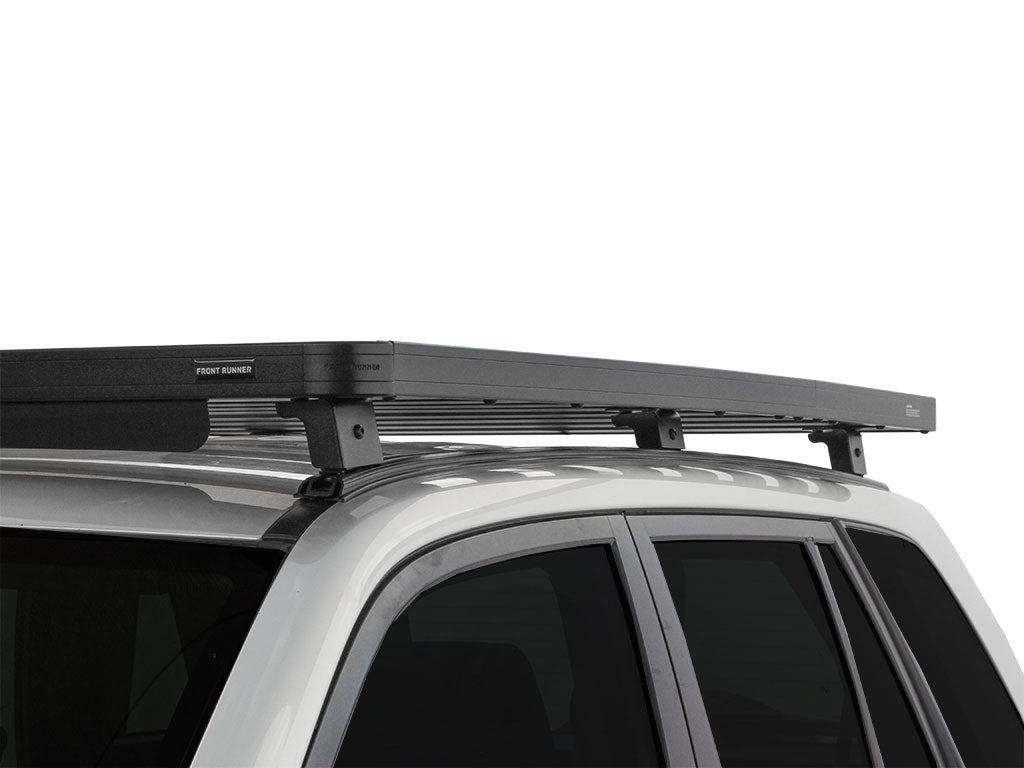

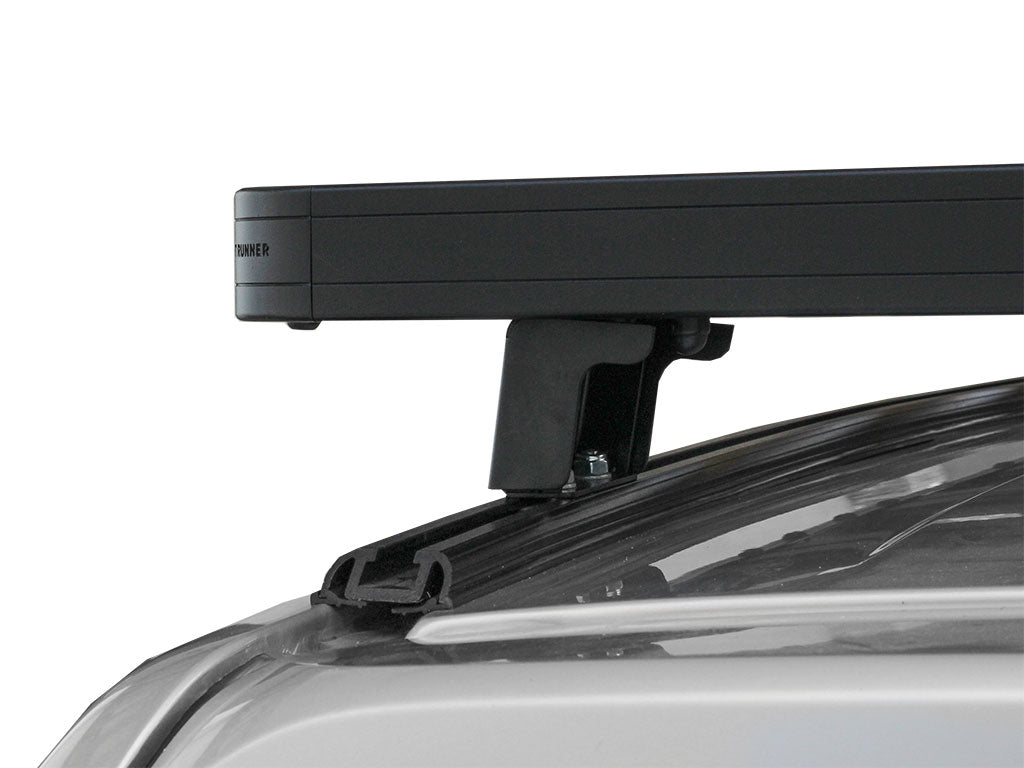

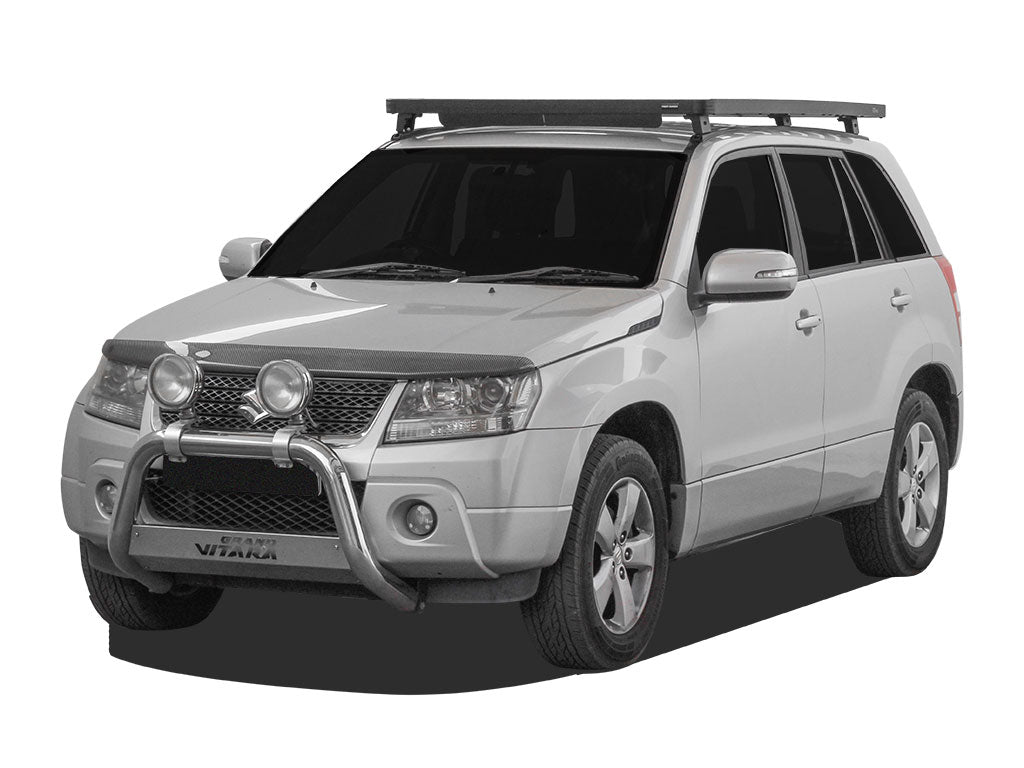

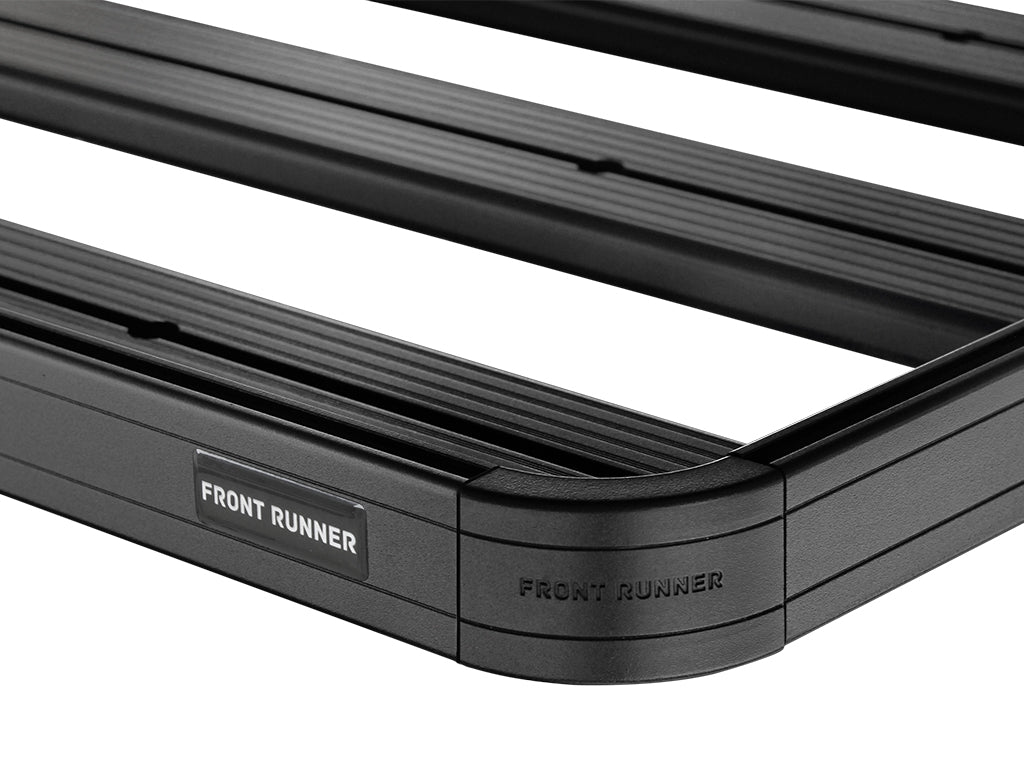

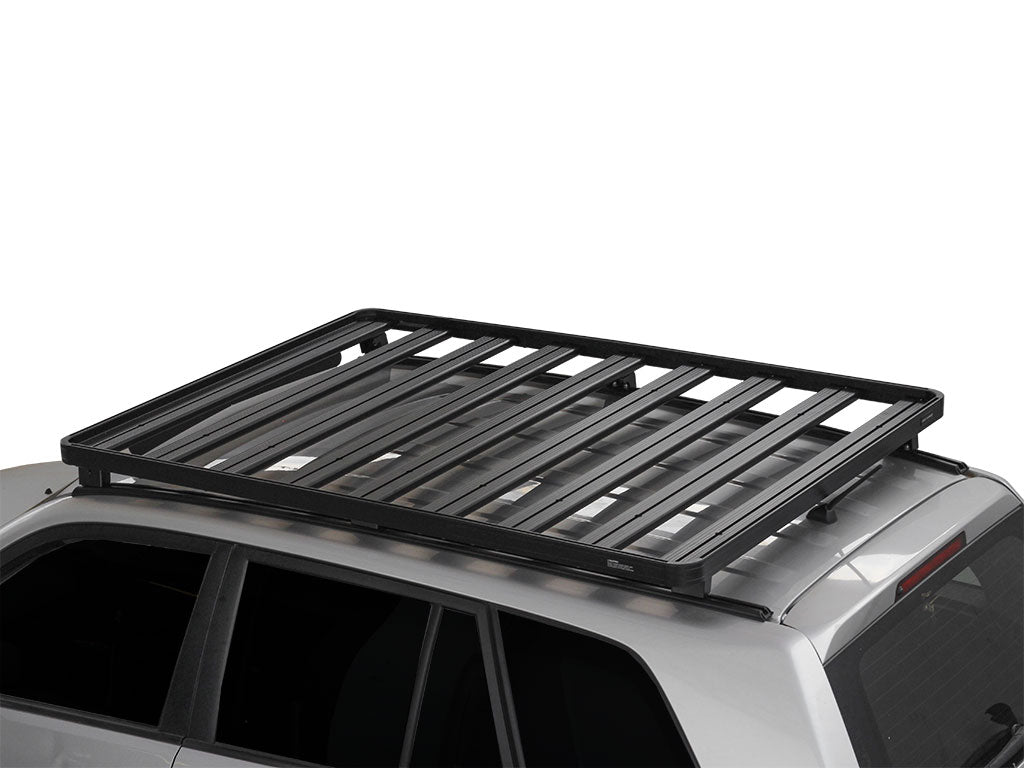

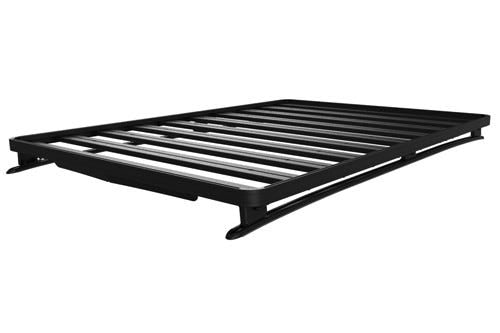

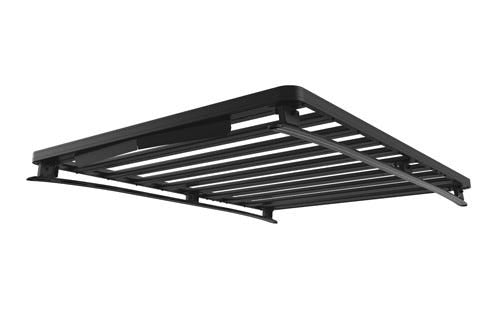

This 1762mm/69.4'' long full-size Slimline II cargo carrying roof rack kit for the Suzuki Grand Vitara (2007-2014) contains Slimline II Tray, Wind Deflector, 2 Tracks and 6 Feet. Drilling is required for installation. KRSV001T - Suzuki Grand Vitara (2007-2014) Slimline II Roof Rack Kit - by Front Runner Consisting of: 1 x FASS012 - Foot Set / 40mm-50mm - by Front Runner2 x FASS013 - Foot Set / 60mm-70mm - by Front Runner1 x RRSTD09 - Slimline II Tray - 1255mm(W) X 1762mm(L) - by Front Runner1 x TRSV001 - Suzuki Vitara Tracks / 1850mm(L) - by Front Runner � Material used: Black epoxy powder-coated T6 aluminium3CR12�Stainless Steel Approximate Installed Weight 29kg (63lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts. To determine the approximate height from your vehicle��s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Legs to determine the height of the rack from your vehicle��s rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof. � Shipping Dimensions: Width�450mm (18'')Length�1615mm (64'')Height 140mm (6'') � Shipping Weight: Weight�33.3kg (73.3lbs) �
