Description

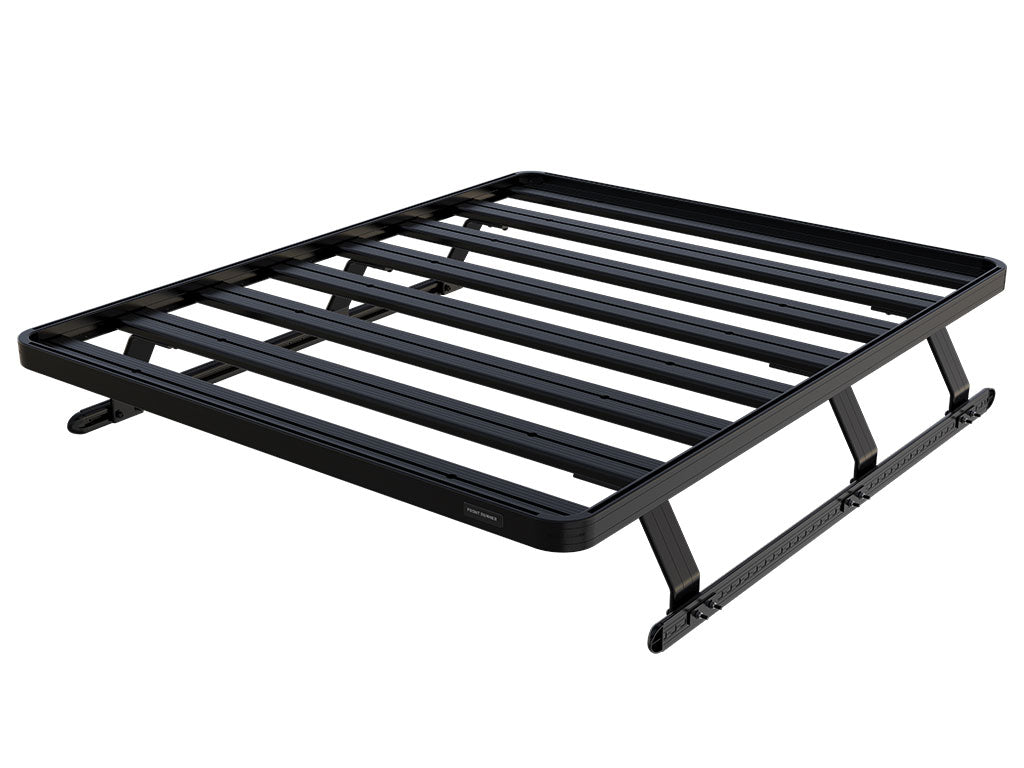

This Ute Load Bed kit contains the Slimline II tray (1345mm x 1560mm), (2) Load Bed Tracks and (4) Load Bed Legs that fit into the Tracks.This rack fits a load bed width of 1405mm - 1494mm (55-58'') and length of 1551mm - 1803mm (61-71'').This kit creates a full size rack that is fitted above a ute load bed. Drilling may be required for installation. KRLB010T - Pick-Up Truck Slimline II Load Bed Rack Kit / 1345(W) x 1560(L) - by Front Runner Consisting of: 6 x LASS026 - Universal Load Bed Leg 188mm (Pair) - by Front Runner 1 x RRSTG08 - Slimline II Tray - 1345mm(W) X 1560mm(L) - by Front Runner 1 x TRBU002 - Pick-Up Load Bed Tracks / 1200mm(L) - by Front Runner � Material used: Black epoxy powder-coated T6 aluminium 3CR12 Stainless Steel Approximate Installed Weight 27kg (60lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts. To determine the approximate height from your vehicle��s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Legs to determine the height of the rack from your vehicle��s rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof. � Shipping Dimensions: Width�450mm (18'')Length�1615mm (64'')Height 140mm (6'') � Shipping Weight: Weight�31.6kg (69.5lbs) �
