Description

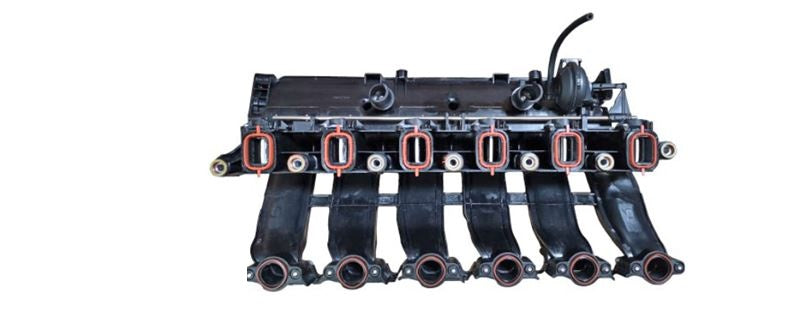

BMW M57 / M57N2 Plastic Intake Manifold - Without Flap Control Motor
A complete direct-replacement plastic intake manifold for BMW 2.5 and 3.0 litre M57 / M57N / M57N2 six-cylinder diesel engines, supplied with new intake gaskets and mounting bolts so you can do the job in one go.
Replaces BMW part number 11617800585 (also written 11 61 7 800 585 / 7800585). Manufactured by Bugiad under part number BIM17019.
Not the right manifold for your car?
This version covers the 3 Series, 5 Series, 6 Series, X3, X5 E53 / E70 and X6. If your car is a 730d or 730Ld (E65 / E66), or you need the version that includes the flap control motor, go to the BMW M57N2 Intake Manifold with Swirl Flap Control (11617800584) instead - worth choosing if your existing actuator is faulty.
Why replace the intake manifold?
The plastic swirl flaps inside M57 intake manifolds are one of the best-known weak points on these engines. The metal pivot pins wear over time and the flaps can break free and get drawn straight into the cylinder head - which typically means bent valves, damaged pistons and a wrecked turbocharger. Fitting a fresh manifold (or fitting this one with the flaps blanked) removes that risk for good, and also cures the carbon-clogged runners that strangle airflow on high-kilometre engines.
Important - No Flap Control Motor Included
This is the "without flap control motor" version of the manifold. The manifold body, runners and gaskets are all supplied, but the electric/vacuum swirl flap actuator motor is not included - you carry your existing actuator over from the old manifold. If your actuator is faulty, order one separately.
Vehicle Fitment
This manifold suits the following BMW models:
| Series | Chassis | Body | Models |
|---|---|---|---|
| 3 Series | E90 | Sedan | 330d, 330xd, 335d |
| 3 Series | E90 LCI | Sedan | 335d (up to 03/2010) |
| 3 Series | E91 | Touring | 330d, 330xd, 335d |
| 3 Series | E91 LCI | Touring | 335d (up to 03/2010) |
| 3 Series | E92 | Coupe | 330d (M57N2), 330xd (M57N2), 335d |
| 3 Series | E93 | Convertible | 330d (M57N2) |
| 5 Series | E60 | Sedan | 525d, 530d, 530xd, 535d |
| 5 Series | E60 LCI | Sedan | 530d, 530xd, 535d |
| 5 Series | E61 | Touring | 525d, 530d, 530xd, 535d |
| 5 Series | E61 LCI | Touring | 530d, 530xd, 535d |
| 6 Series | E63 LCI | Coupe | 635d |
| 6 Series | E64 LCI | Convertible | 635d |
| X3 | E83 | SAV | X3 3.0d (M57N and M57N2) |
| X3 | E83 LCI | SAV | X3 3.0d, X3 3.0sd |
| X5 | E53 | SAV | X5 3.0d (M57N) |
| X5 | E70 | SAV | X5 3.0sd |
| X6 | E71 | SAC | X6 35dX |
Fits both left and right hand drive vehicles.
Please check before ordering: BMW used several manifold variants across the M57 family depending on engine revision and emissions standard, and some later engines have no swirl flaps at all. If you are not certain which manifold your car takes, send us your VIN or chassis number and we will confirm the correct part for you before you buy.
What's in the Box
- 1 x plastic intake manifold (without flap control motor)
- Intake manifold gaskets / seals
- Mounting bolts
Specifications
| Manufacturer part number | BIM17019 |
| Replaces BMW part number | 11617800585 |
| Engines | M57 / M57N / M57N2 - 2.5L & 3.0L inline-6 turbo diesel |
| Flap control motor included | No - reuse original actuator |
| Condition | New |
| Quantity required per vehicle | 1 |
| Weight | 4.6 kg |
| Guide fitting time | 3-4 hours |
Installation
Allow roughly 3-4 hours for the swap. We recommend installation is carried out by a qualified diesel technician. While you have the manifold off, it is worth replacing any brittle vacuum lines and inspecting the glow plug harness. If you are deleting the swirl flaps at the same time, keep the original actuator rail and vacuum line connected so the system doesn't log a fault.
Please Note
This is a quality aftermarket (non-genuine) replacement part manufactured by Bugiad. It is not an original BMW item and is not supplied in BMW packaging.
