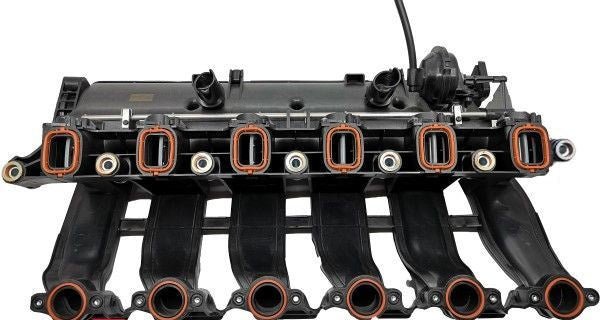

BMW M57N2 Plastic Intake Manifold with Swirl Flap Control
A complete direct-replacement intake manifold assembly for BMW 3.0 litre M57N2 six-cylinder diesel engines, supplied with a new intake gasket set and mounting bolts so the job can be done in one hit.
Replaces BMW part number 11617800584 (also written 11 61 7 800 584 / 7800584). Manufactured by Bugiad under part number BIM17000.
Not the right manifold for your car?
This version suits the 7 Series E65 / E66, X5 E70 and X6 E71. If your car is a 3 Series (E90 / E91 / E92 / E93), 5 Series (E60 / E61), 6 Series (E63 / E64), X3 E83 or X5 E53, you need the BMW M57 / M57N2 Intake Manifold without Flap Control Motor (11617800585) instead.
Why replace the intake manifold?
The plastic swirl flaps inside M57 intake manifolds are a well-known weak point. The metal pivot pins wear over time and the flaps can break free and get drawn into the cylinder head, which typically means bent valves, damaged pistons and a destroyed turbocharger. Replacing a tired manifold with a fresh unit (or fitting this one with the flaps blanked) removes that risk entirely.
Vehicle Fitment
This manifold suits the following BMW models:
| Series | Chassis | Body | Model / Engine |
|---|---|---|---|
| 7 Series | E65 | Sedan | 730d - M57N2 |
| 7 Series | E66 | Sedan (long wheelbase) | 730Ld - M57N2 |
| X5 | E70 | SAV | 3.0d / 3.0sd / 35d - M57N2 |
| X6 | E71 | SAC | xDrive35d / 30d - M57N2 |
Fits both left and right hand drive vehicles.
Please check before ordering: BMW used several intake manifold variants across the M57 family depending on engine revision and emissions standard. M57N2 engines in the models above run 33 mm swirl flaps. If you are unsure which manifold your car takes, send us your VIN or chassis number and we will confirm the correct part for you before you buy.
What's in the Box
- 1 x intake manifold with flap control
- Intake manifold seal / gasket set
- Mounting bolts
Specifications
| Manufacturer part number | BIM17000 |
| Replaces BMW part number | 11617800584 |
| Engine | M57N2 - 3.0L inline-6 turbo diesel |
| Swirl flap size | 33 mm |
| Condition | New |
| Quantity required per vehicle | 1 |
| Weight | 4.5 kg |
| Guide fitting time | 3-4 hours |
Installation
Allow roughly 3-4 hours for the swap. We recommend installation is carried out by a qualified diesel technician, and that you replace the manifold gaskets and any brittle vacuum lines while you are in there. If you are deleting the swirl flaps at the same time, keep the original actuator rail and vacuum line connected so the system doesn't throw a fault.
Please Note
This is a quality aftermarket (non-genuine) replacement part manufactured by Bugiad. It is not an original BMW item and is not supplied in BMW packaging.
