Description
These shocks are remote resi and adjustable.
Suits all Nissan Patrol GQ & GU Y60 & Y61
Fitment to Rear for vehicles with lift between 0"-2.5"

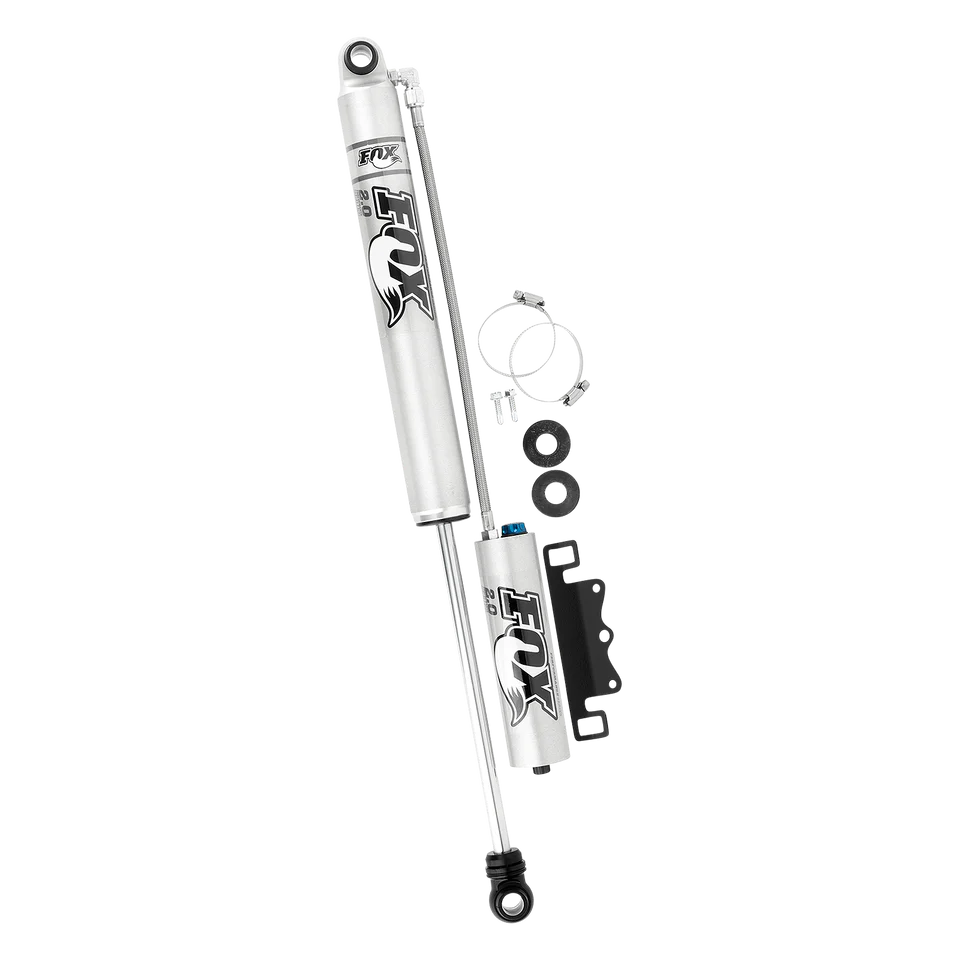

Includes Billet Reservoir Clamp
Does Not Fit Leaf Spring Models
NOTE : Extended bump stops are recomended and For smaller lifts drop out cones and coil retainers may be required.

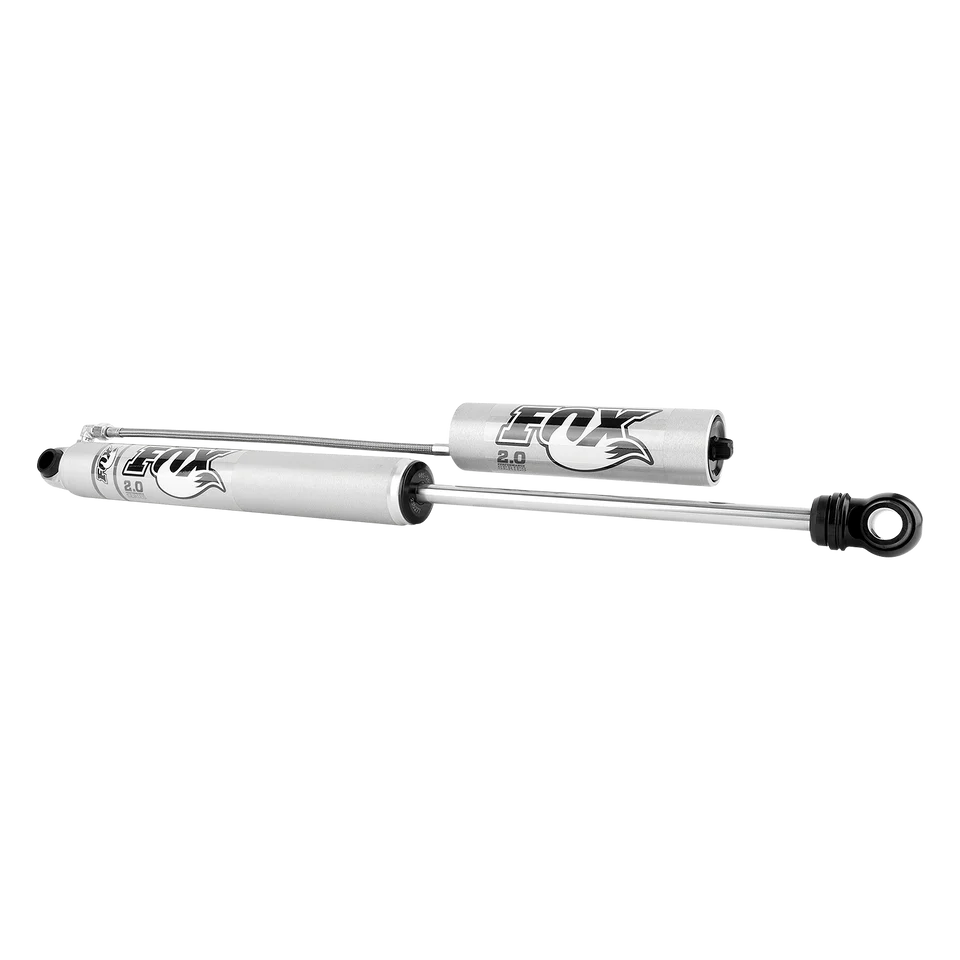

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
| PART NUMBER | 885-26-224 |
| SERIES | Performance |
| TRAVEL | 10.12 |
| BODY | 2.0" Impact extruded 6061-T6 aluminum will resist rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 26.02 |
| COMPRESSED LENGTH | 15.9 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Rear Lift : 0 - 2.5 inches Includes Universal Bracket Does Not Fit Leaf Spring Models |
